Front Door Weatherstrip: Service and Repair

REMOVAL STEPS
1. Door opening weatherstrip
2. Door belt inside weatherstrip
3. Door sash inside weatherstrip
4. Door drip weatherstrip

SERVICE POINTS OF REMOVAL





1. Removal Of Door Opening Weatherstrip

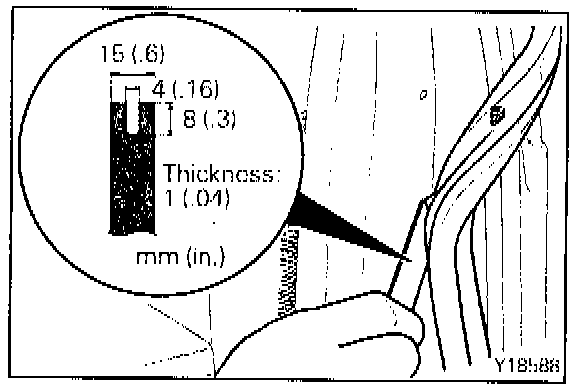

Remove the door opening weatherstrip by using the tool shown in the illustration.





2. Removal Of Door Belt Inside Weatherstrip/3. Door Sash Inside Weatherstrip

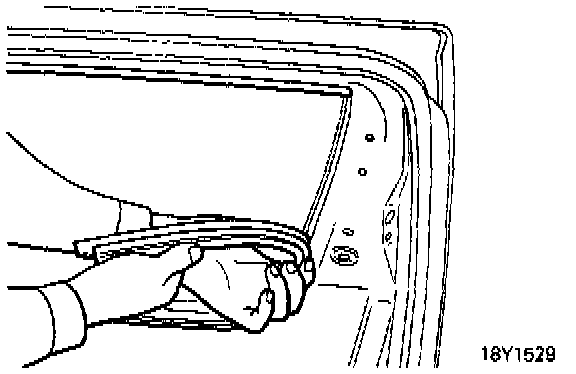

Remove the door sash inside weatherstrip and the door belt inside weatherstrip by hand.

SERVICE POINT OF INSTALLATION





1. Installation Of Door Opening Weatherstrip

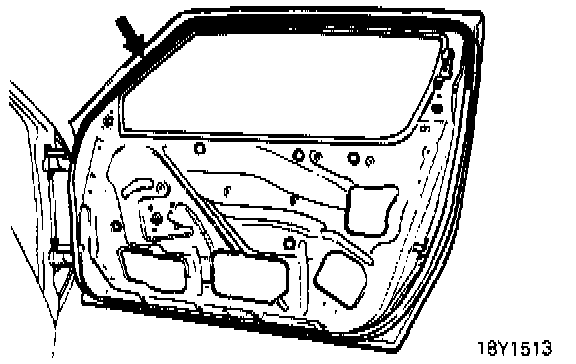

Apply the specified adhesive at the position shown in the illustration, and then attach the door opening weatherstrip.

Specified adhesive: MOPAR Rope Caulk Sealer 3/16 x 80" roll Part No. 4026044 or equivalent.

INSPECTION
^ Check door inside handle and latch for wear, damage or malfunction.
