Console: Service and Repair

REMOVAL STEPS
1. Anchor plate connection
2. Spool release lever
3. Rear console panel
4. Remote control mirror switch
5. Rear console box harness
6. Inner box
7. Bezel
8. Rear console box
9. Ashtray
10. Accessory panel
11. Accessory box lid
12. Shift lever knob
13. Side console cover
14. Front console box
15. Radio
16. Parcel box
17. Radio panel
18. M/T garnish
19. Shift lever cover

SERVICE POINTS OF REMOVAL





8. Removal Of Rear Console Box

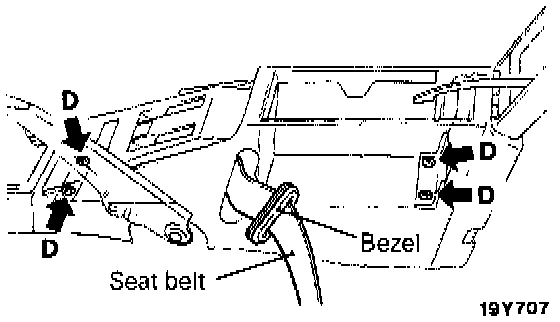

1. Remove the installation screws for the rear console box.
2. Remove the bezel. Put the seat belt in the console box.





13. Removal Of Side Console Cover

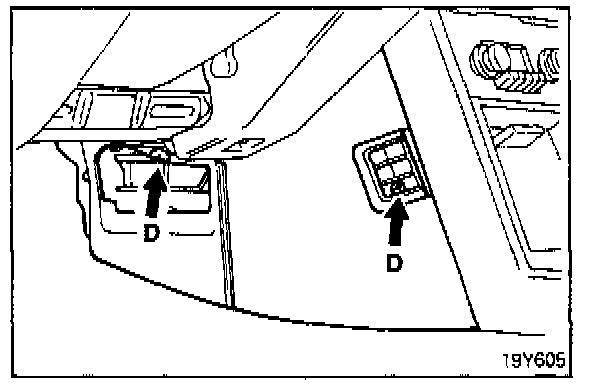

1. Remove the side console cover screws.
2. Remove the cover downward while pushing it slightly forward.

14. Removal Of Front Console Box

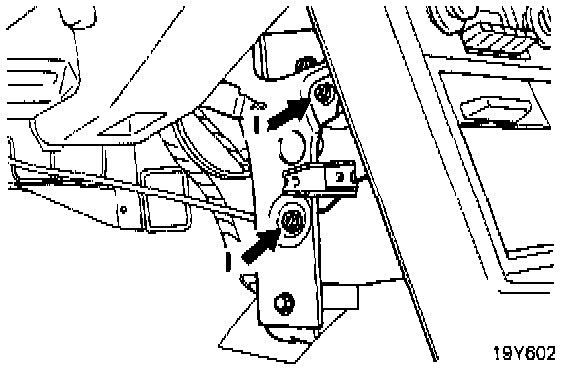

1. Remove the radio installation screws from the center reinforcement.
2. Move the shift lever to 4th gear.
3. Pull the front console box slightly backward.

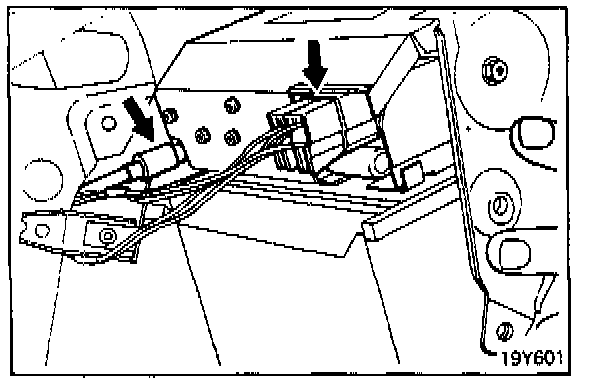

4. Remove the part where the radio antenna feeder line is inserted and the connector for the radio.
5. Pull the front console box out toward the passenger seat.

SERVICE POINT OF INSTALLATION

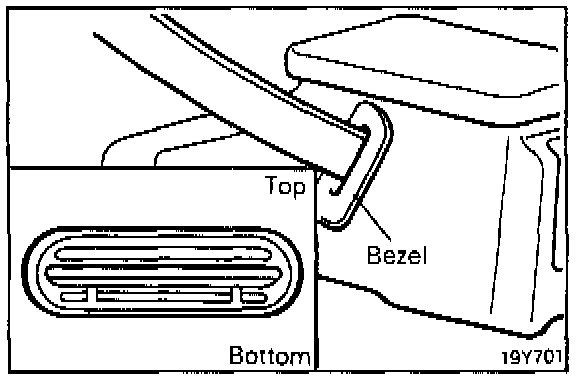

7. Installation Of Bezels
Draw out the shoulder belts from the console box, and install bezels to the console box while paying attention to the installation direction. If the bezel is installed in the wrong way, the belt will twist in the console box.
