Home >> Chrysler >> 1985 >> Lebaron GTS L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Diagrams >> Electrical Diagrams >> Ignition Switch/System >> Part 3 of 5

Part 3 of 5

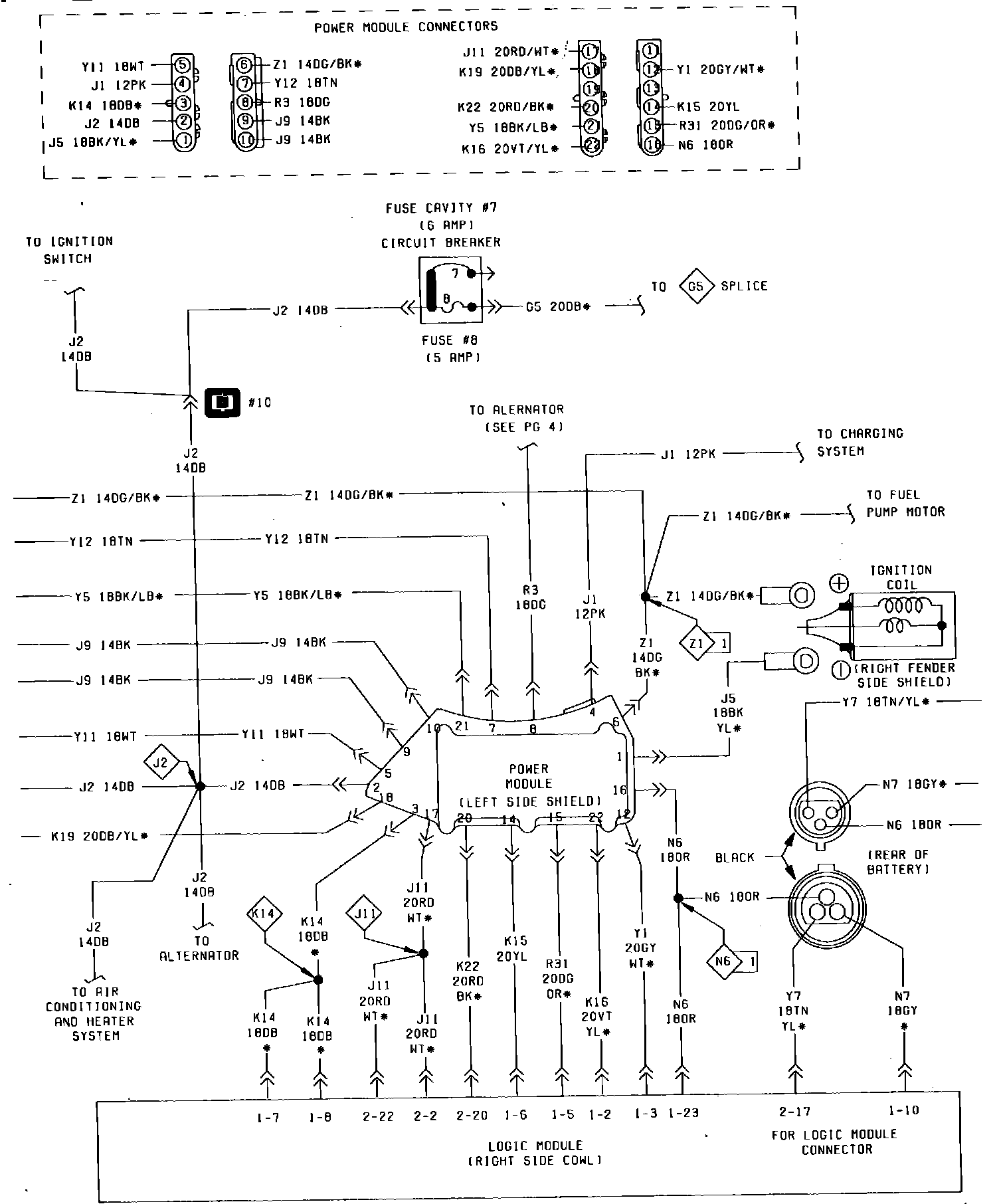

Fig. 27 Ignition System Wiring Circuit (With Turbocharger, Part 3 of 5). 1985:
