Chrysler
>>
1985
>>
Lebaron Convertible L4-156 2.6L SOHC VIN G 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>

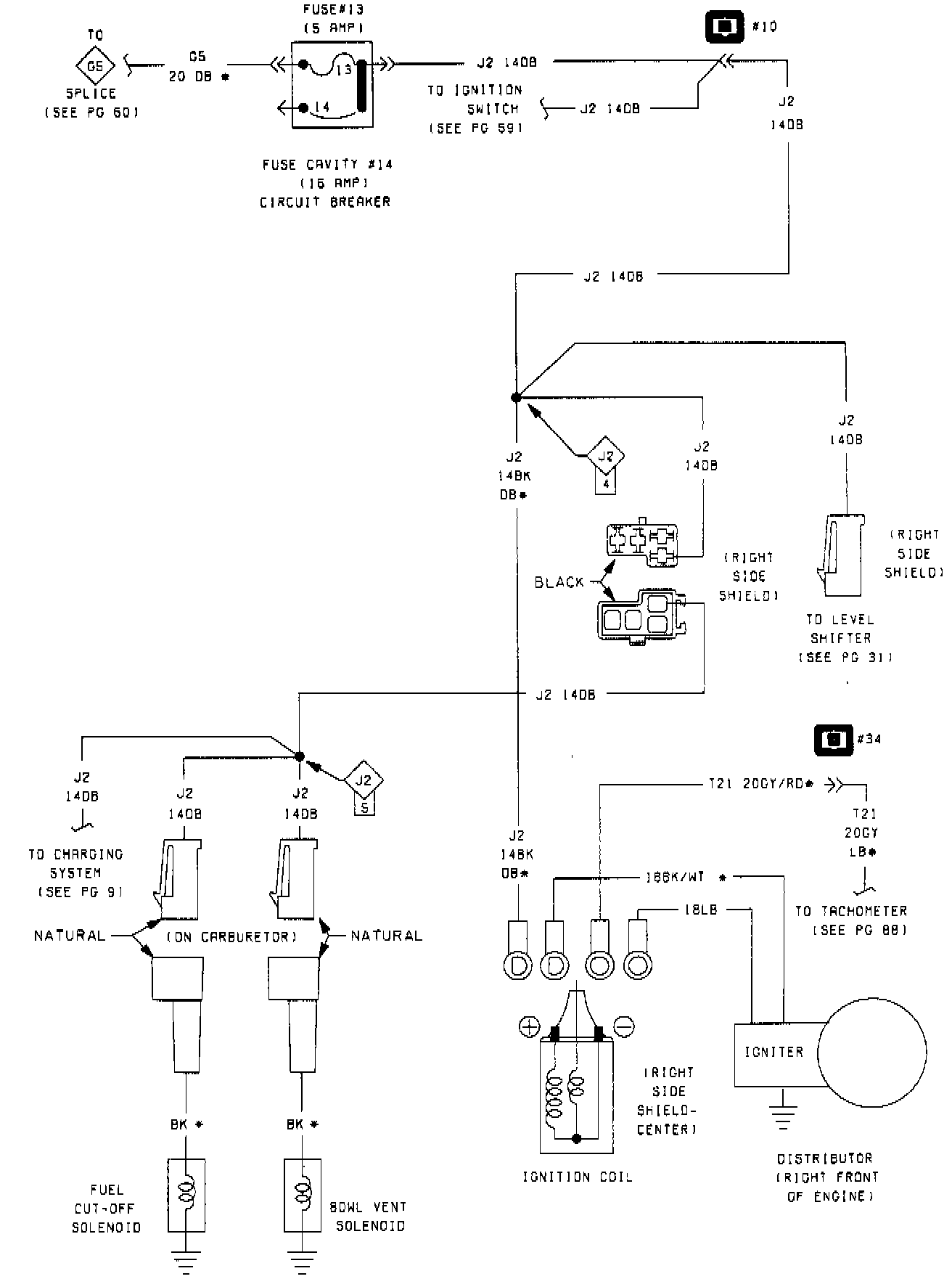

System Diagram
>>
Without Feedback Carburetor
Without Feedback Carburetor
Part 1 Of 1:
