Electrical Diagrams

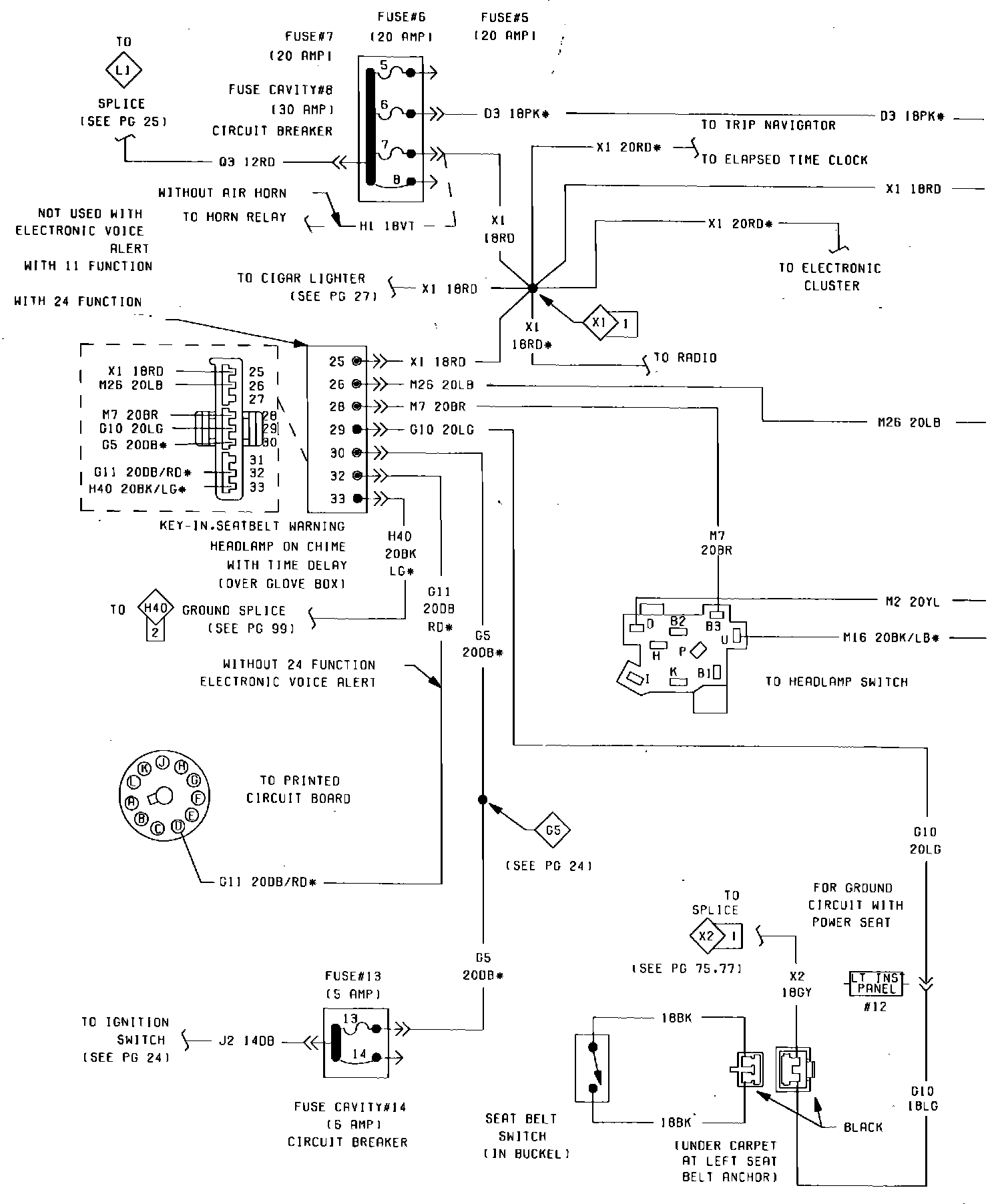

Fig. 16 Courtesy & Dome Lamps & Seatbelt Warning System Wiring Circuit (Less Voice Alert, Part 1 of 3). 1985:

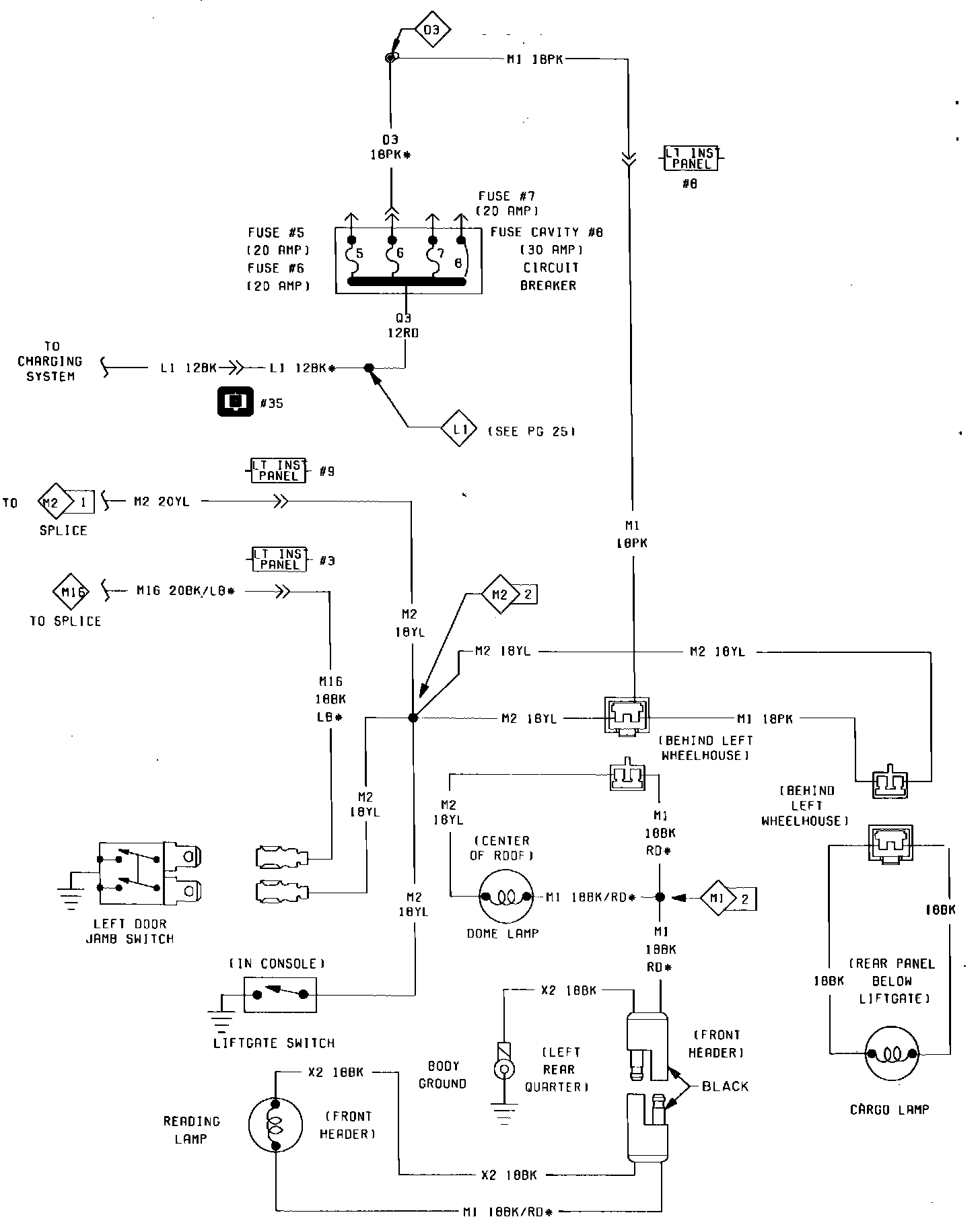

Fig. 16 Courtesy & Dome Lamps & Seatbelt Warning System Wiring Circuit (Less Voice Alert, Part 2 of 3). 1985:

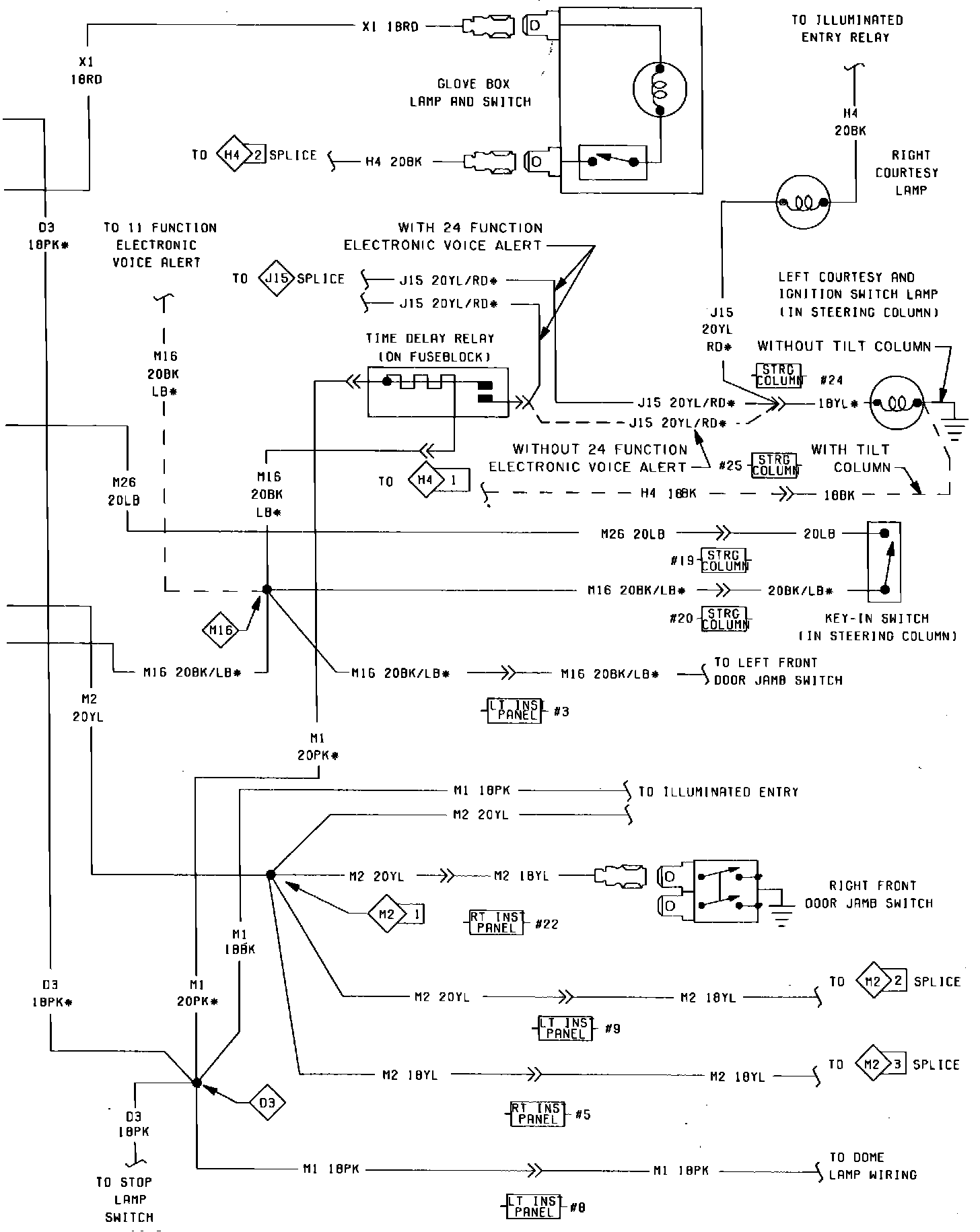

Fig. 16 Courtesy & Dome Lamps & Seatbelt Warning System Wiring Circuit (Less Voice Alert, Part 3 of 3). 1985:
