Home >> Chrysler >> 1984 >> Lebaron Convertible L4-135 2.2L SOHC VIN D TBI >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Diagrams >> Part 1

Part 1

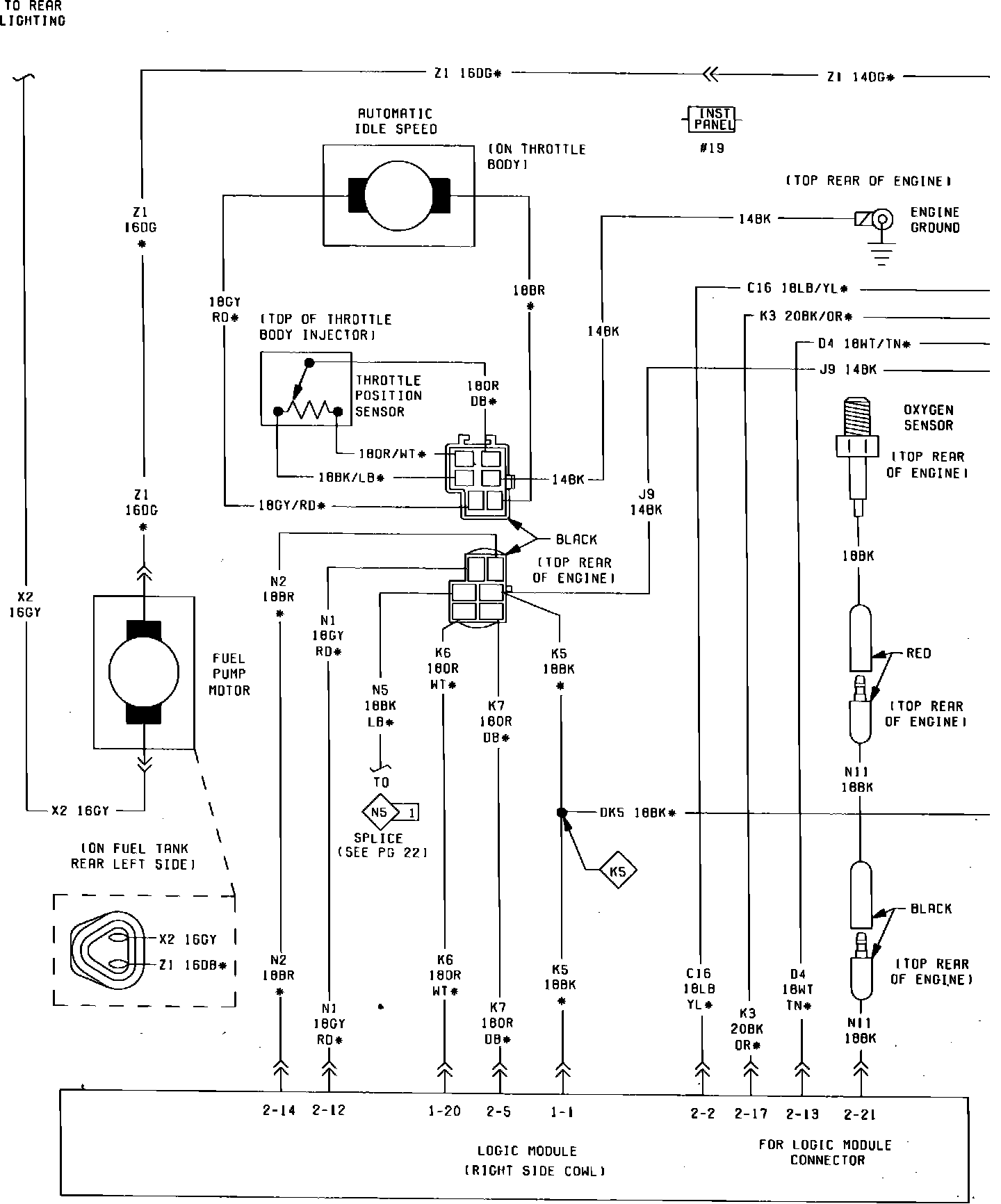

Electronic Fuel Injection Wiring Circuit (Part 1 of 4). 1984 W/Throttle Body Injection:
