Part 1 of 3

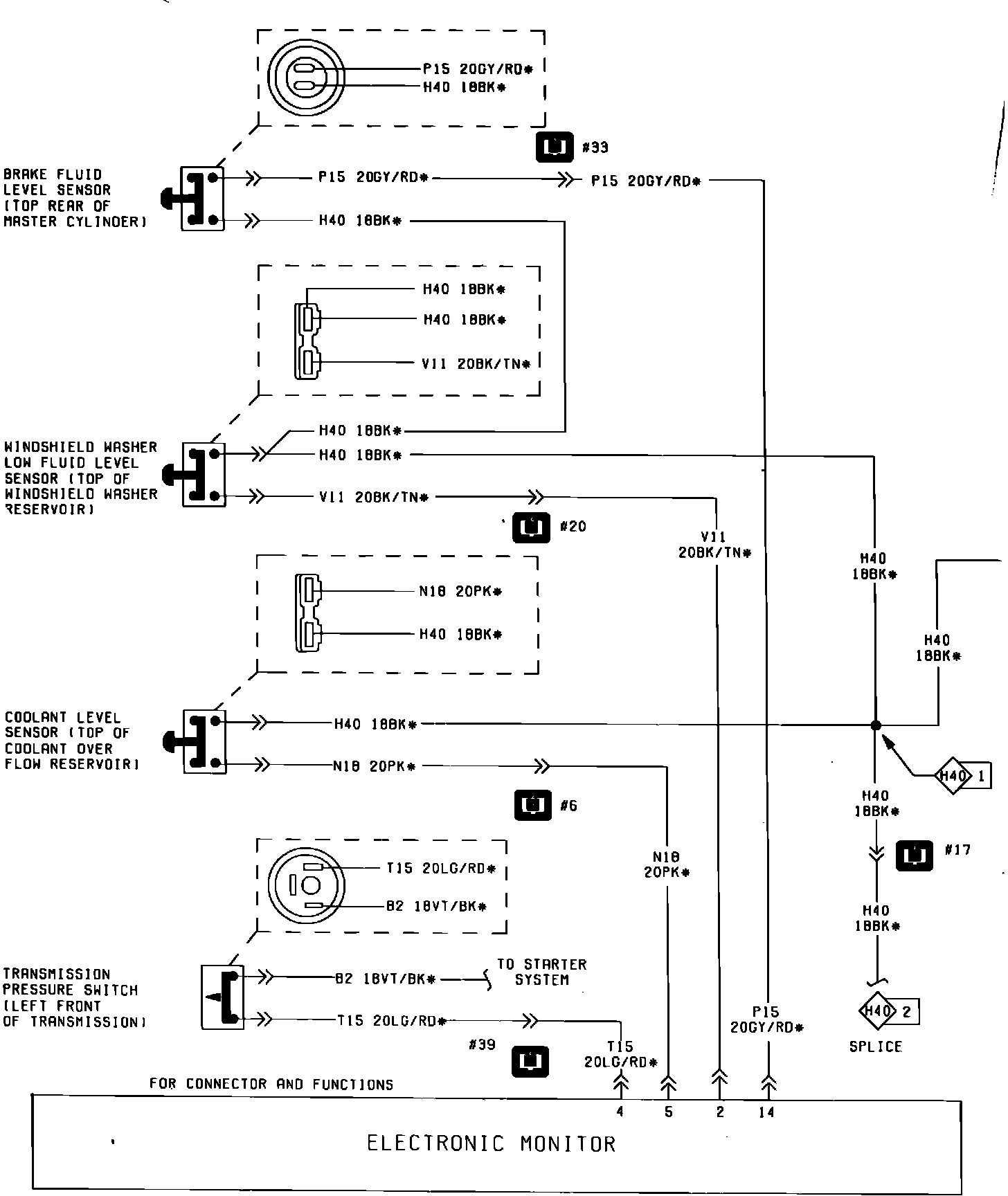

Fig. 26 Electronic Voice Alert Wiring Circuit (24 Function, Part 1 of 3). 1984 Without Trip Navigator:
