Part 2 of 2

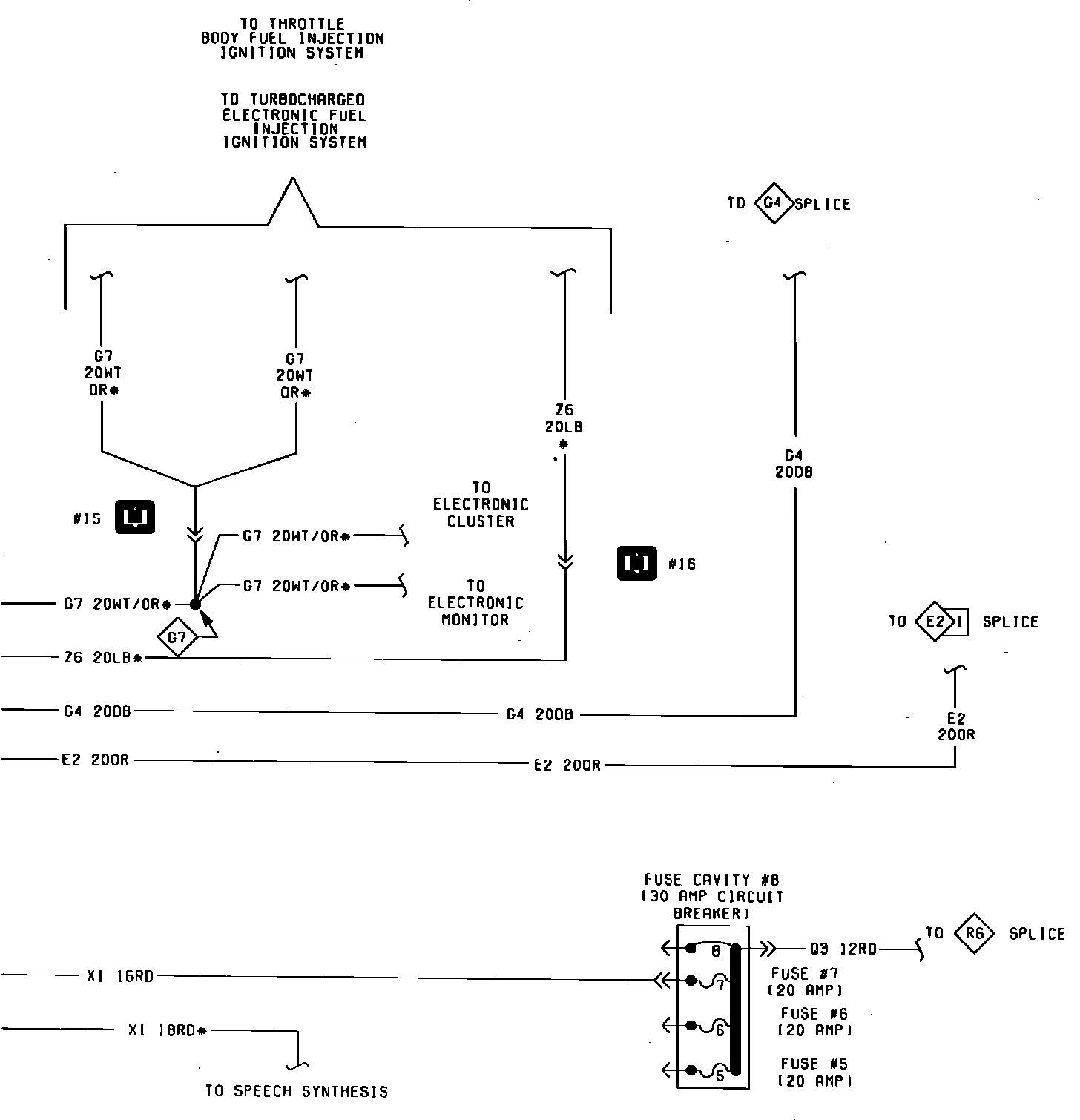

Fig. 27 Electronic Voice Alert Wiring Circuit (24 Function, Part 2 of 2). 1984 With Trip Navigator:
