Home
>>
Chrysler
>>
1984
>>
Laser L4-135 2.2L SOHC VIN D TBI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Map Light
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

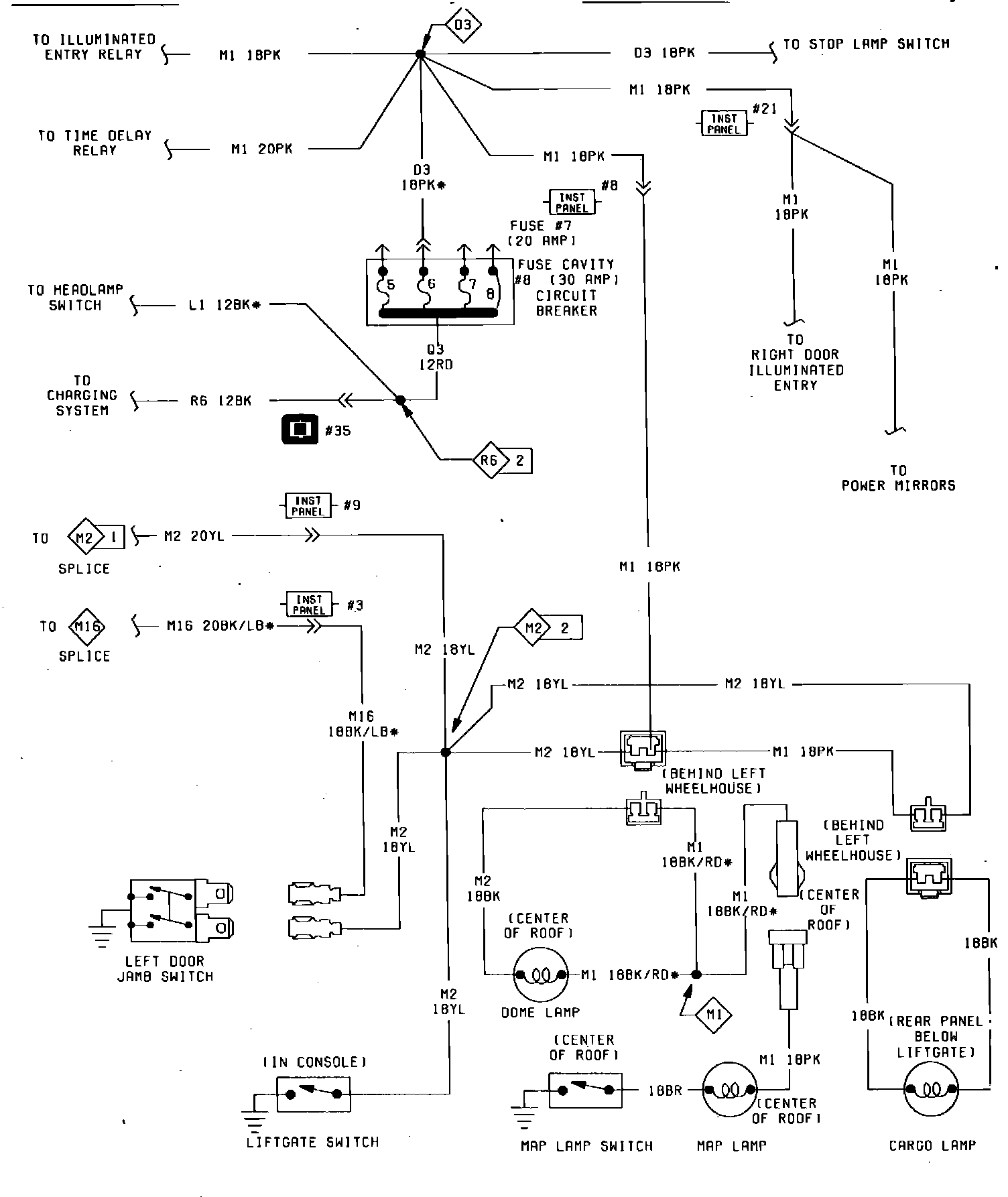

Fig. 15 Cargo, Dome & Map Lamps Wiring Circuit. 1984:
