Home
>>
Chrysler
>>
1984
>>
Laser L4-135 2.2L SOHC VIN D TBI
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Engine Lubrication
>>
Oil Temperature Sensor/Switch
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

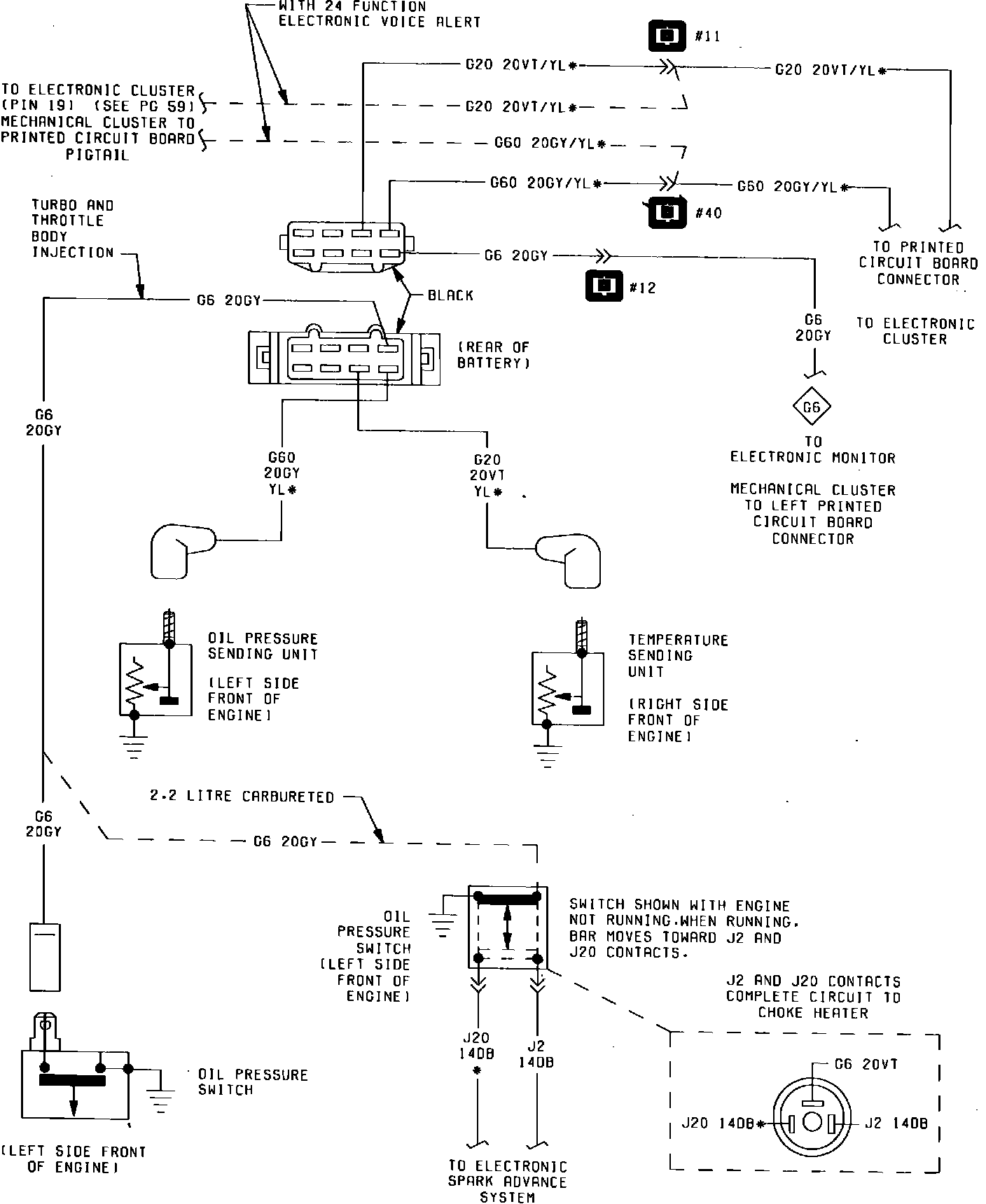

Fig. 43 Oil Pressure & Temperature System Wiring Circuit. 1984:
