Home >> Chrysler >> 1984 >> Laser L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Fuel Distance/Mileage Module >> Diagrams >> Electrical Diagrams >> Part 1 of 2

Part 1 of 2

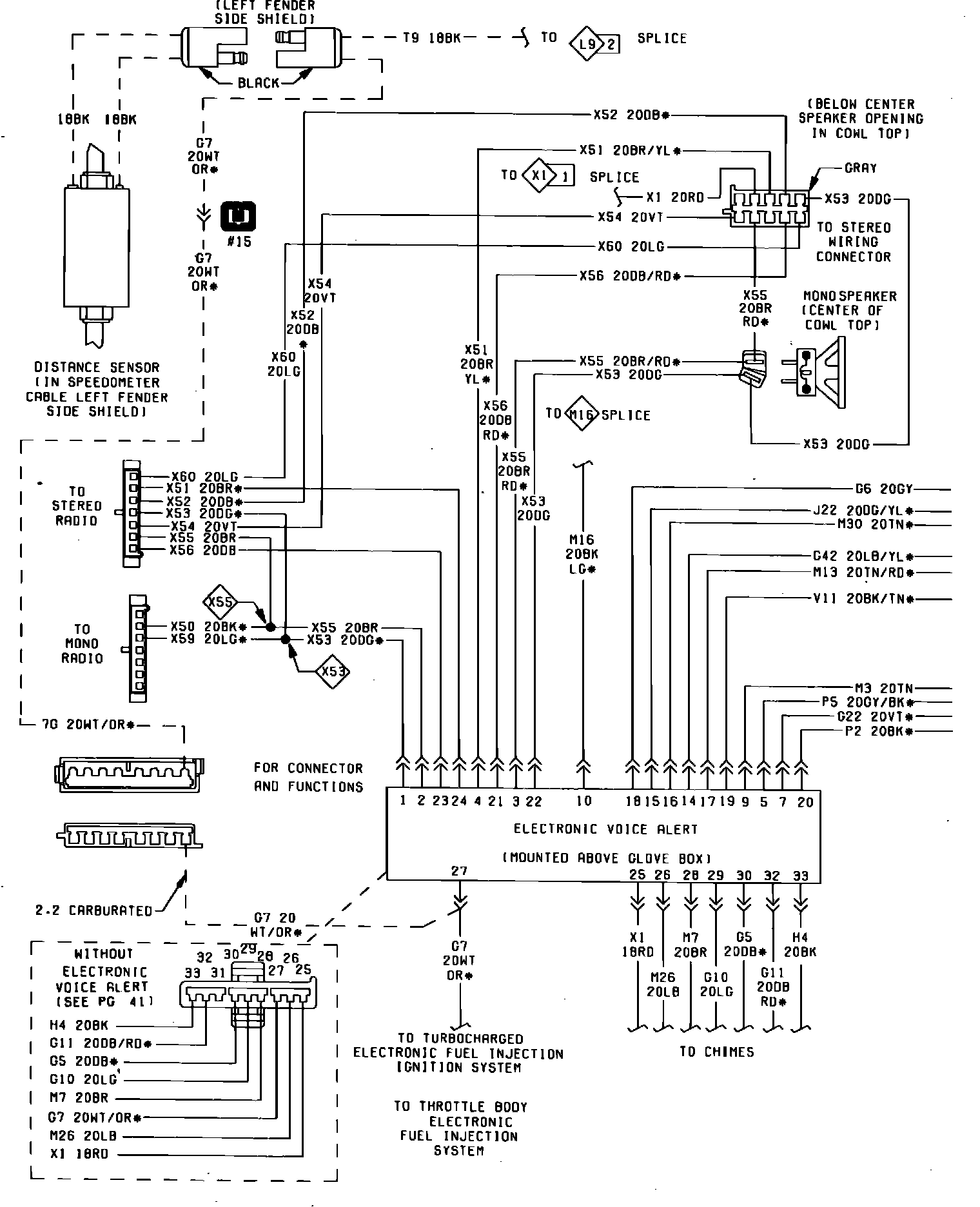

Fig. 25 Electronic Voice Alert Wiring Circuit (11 Function, Part 1 of 2). 1984:
