Chrysler
>>
1984
>>
Laser L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Engine Splices
Engine Splices

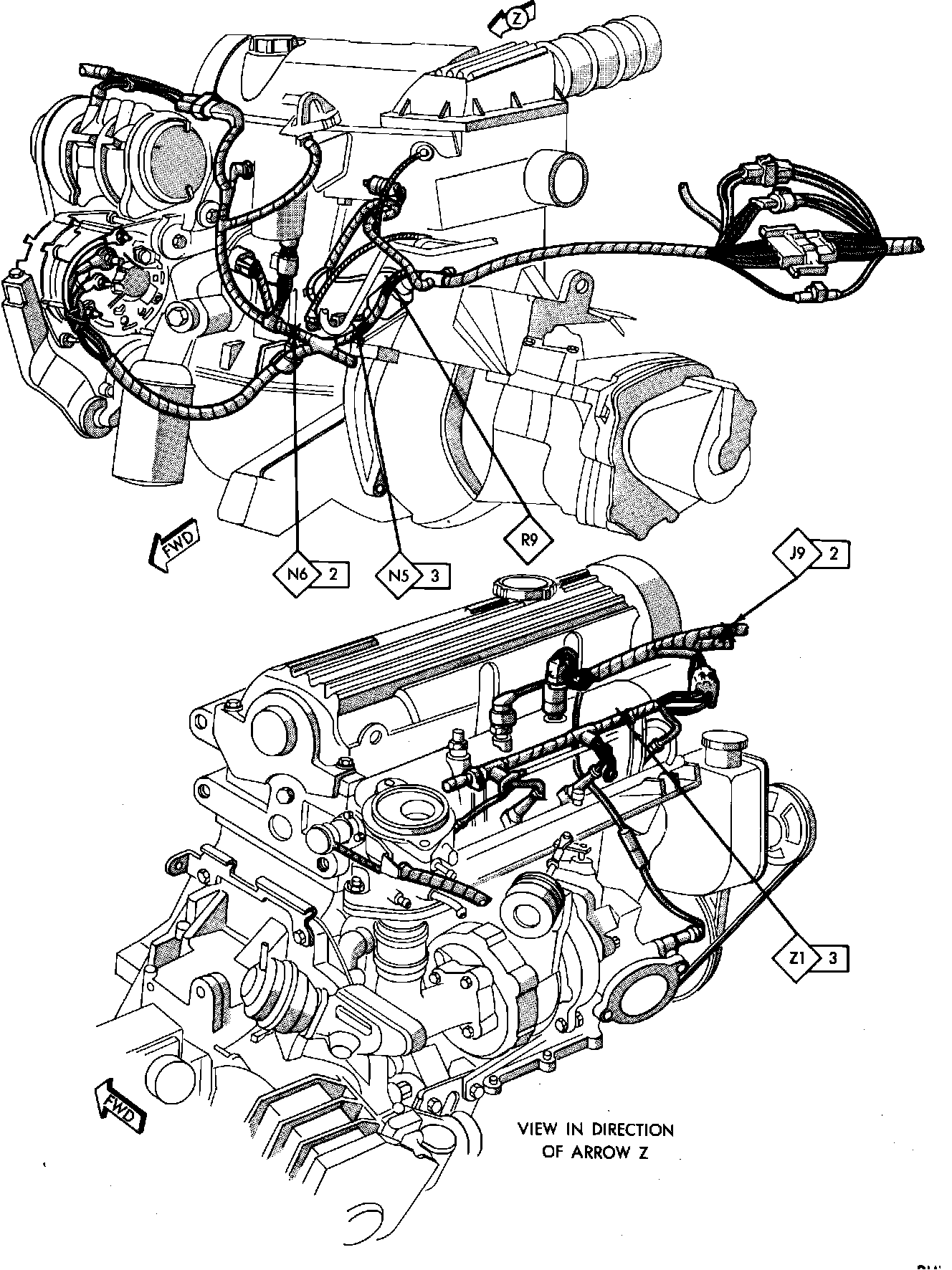

Fig. 62 Splice Locations (Engine). 1984 4-135 Turbocharged:
