Home
>>
Chrysler
>>
1984
>>
Fifth Avenue V8-318 5.2L VIN R
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

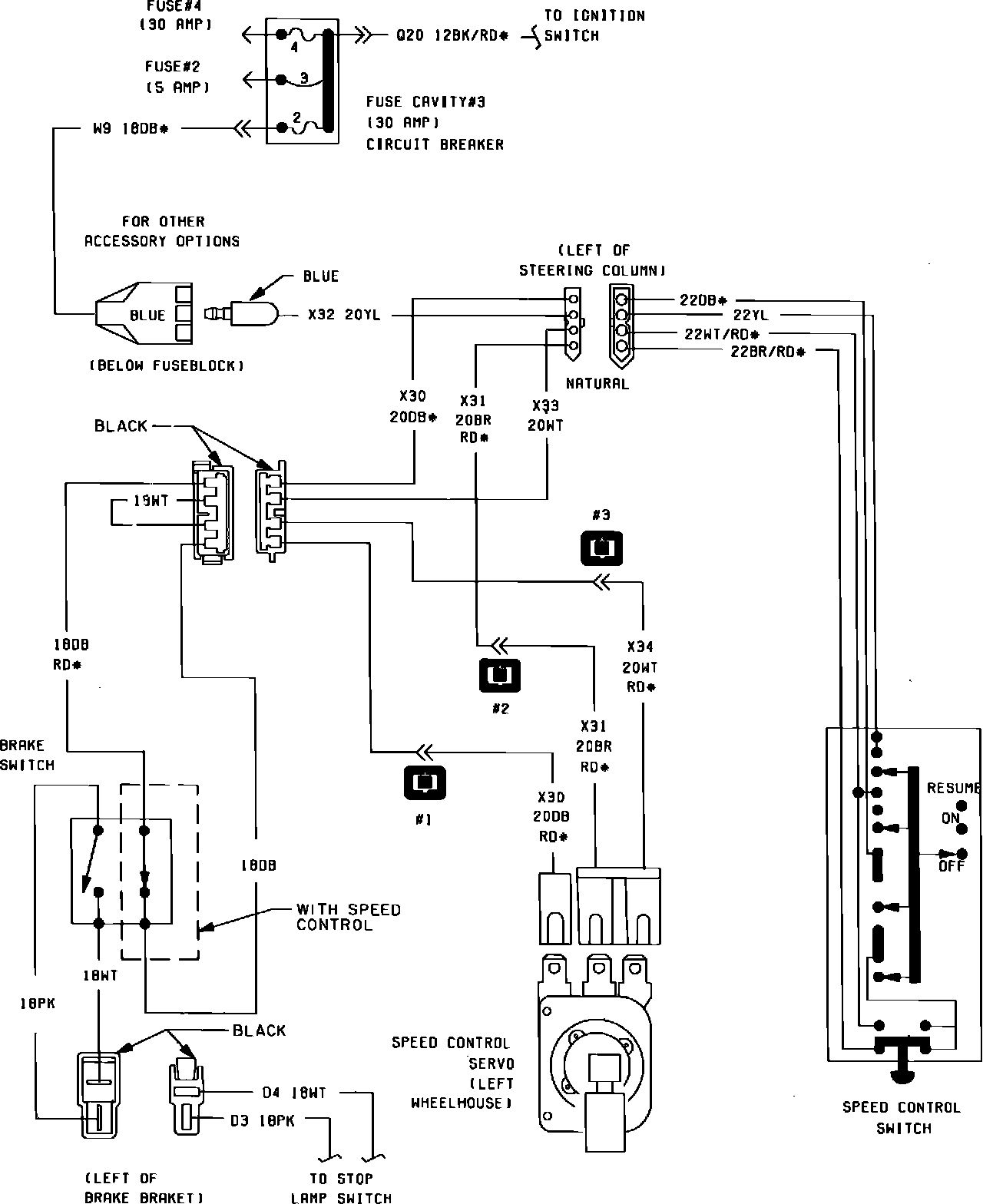

Fig. 57 Speed Control Wiring Circuit. 1984:
