E Class L4-156 2.6L SOHC VIN G 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Convertible Top
Convertible Top

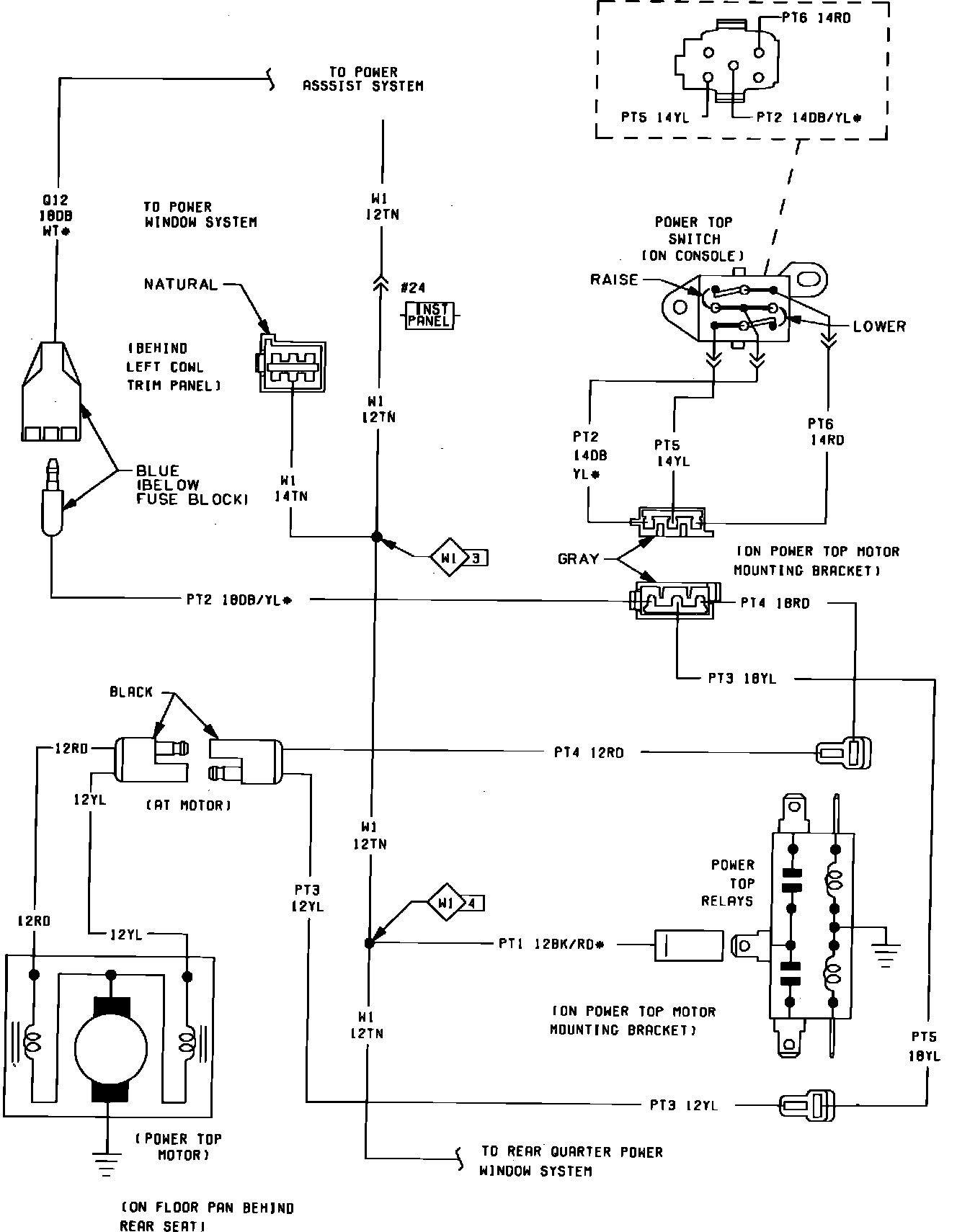

Fig. 98 Power Top Wiring Circuit. 1984:
