Chrysler
>>
1983
>>
New Yorker L4-134 2.2L VIN C 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering Column
>>
Instrument Panel to Steering Column
Instrument Panel to Steering Column

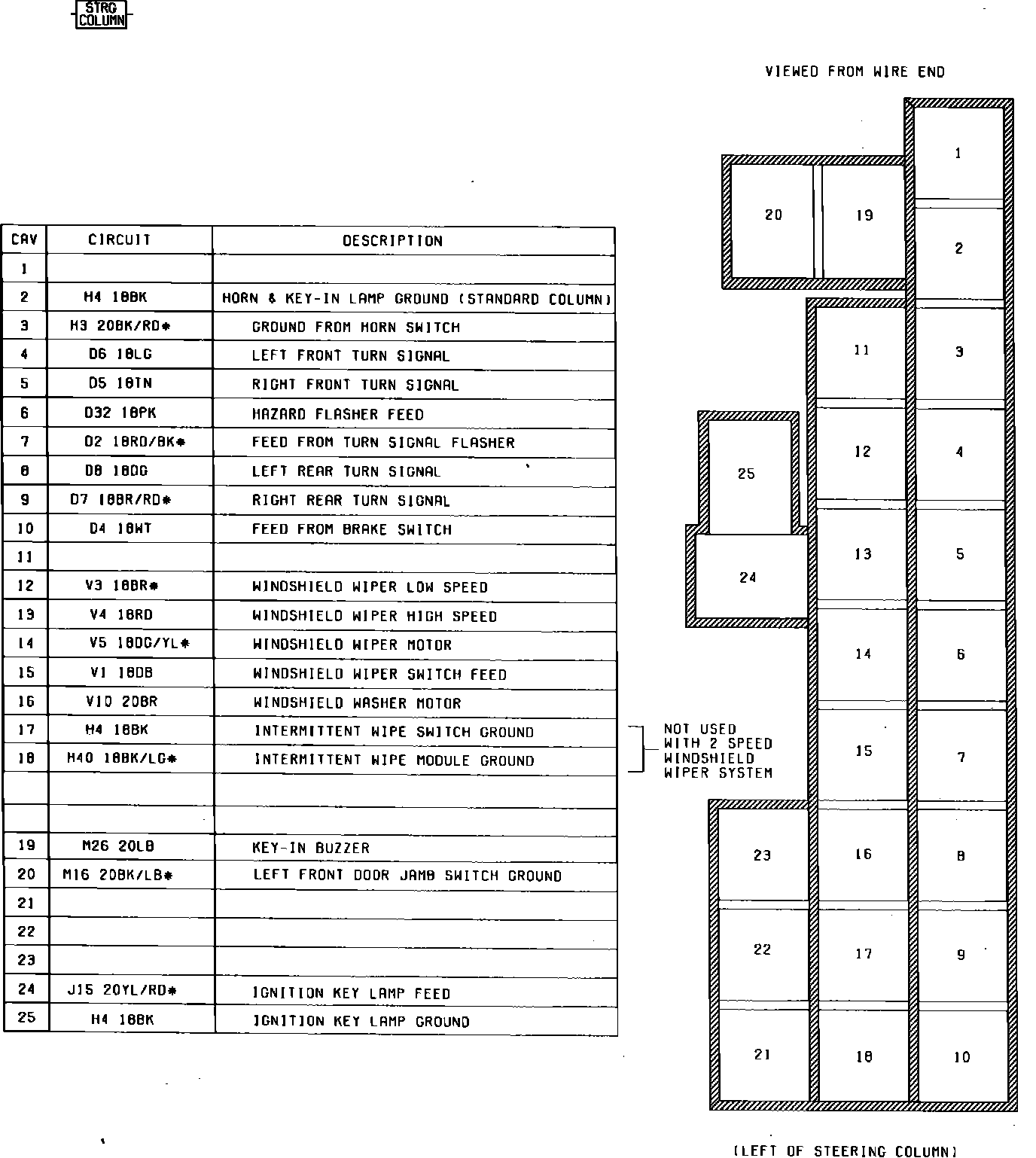

Fig. 4 Instrument Panel To Steering Column Connector:
