Lebaron Convertible L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Heater System Circuit

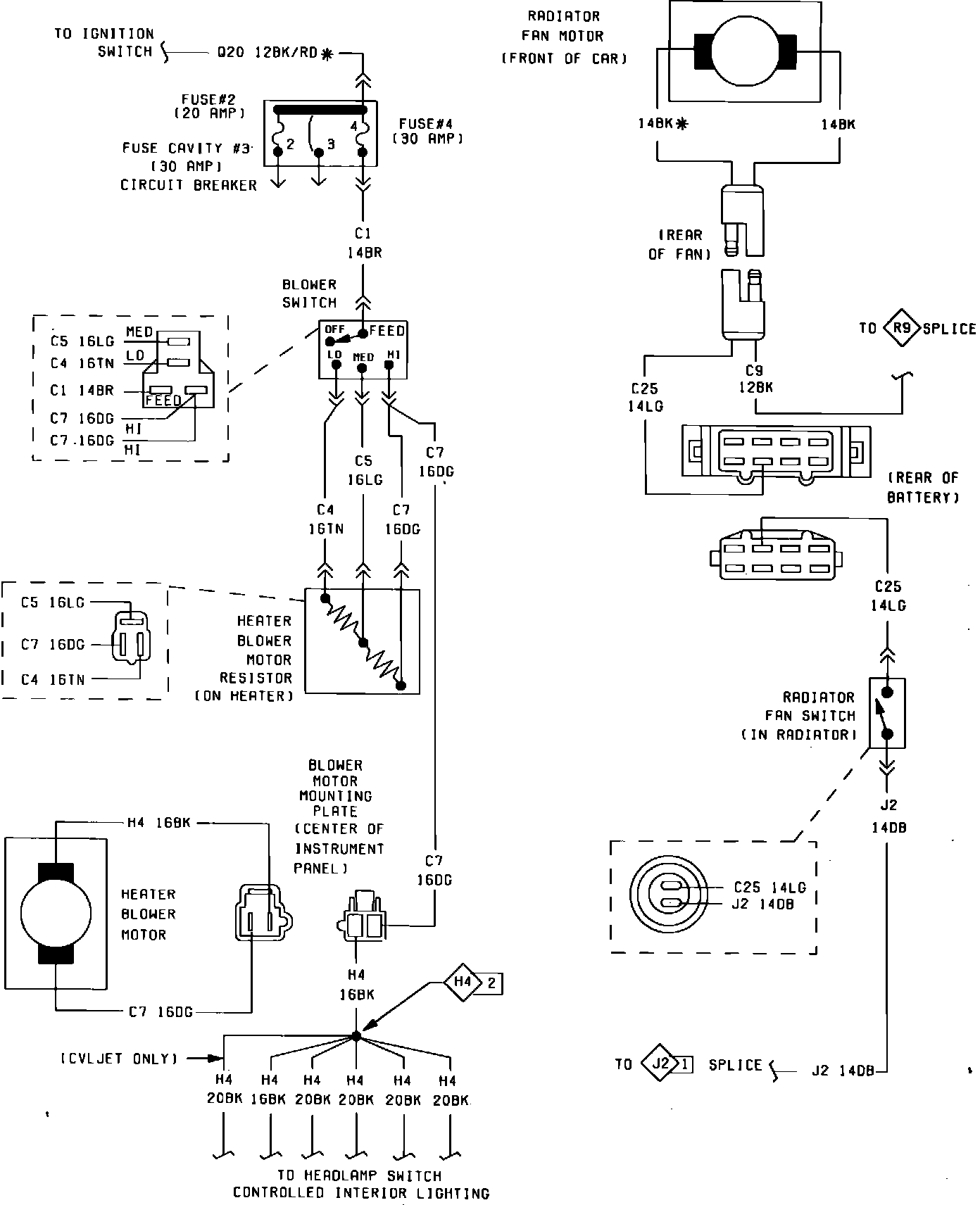

Heater System Circuit
Heater System 2.2L:
