Instrument Panel to Body Connector
Instrument Panel to Body Connector

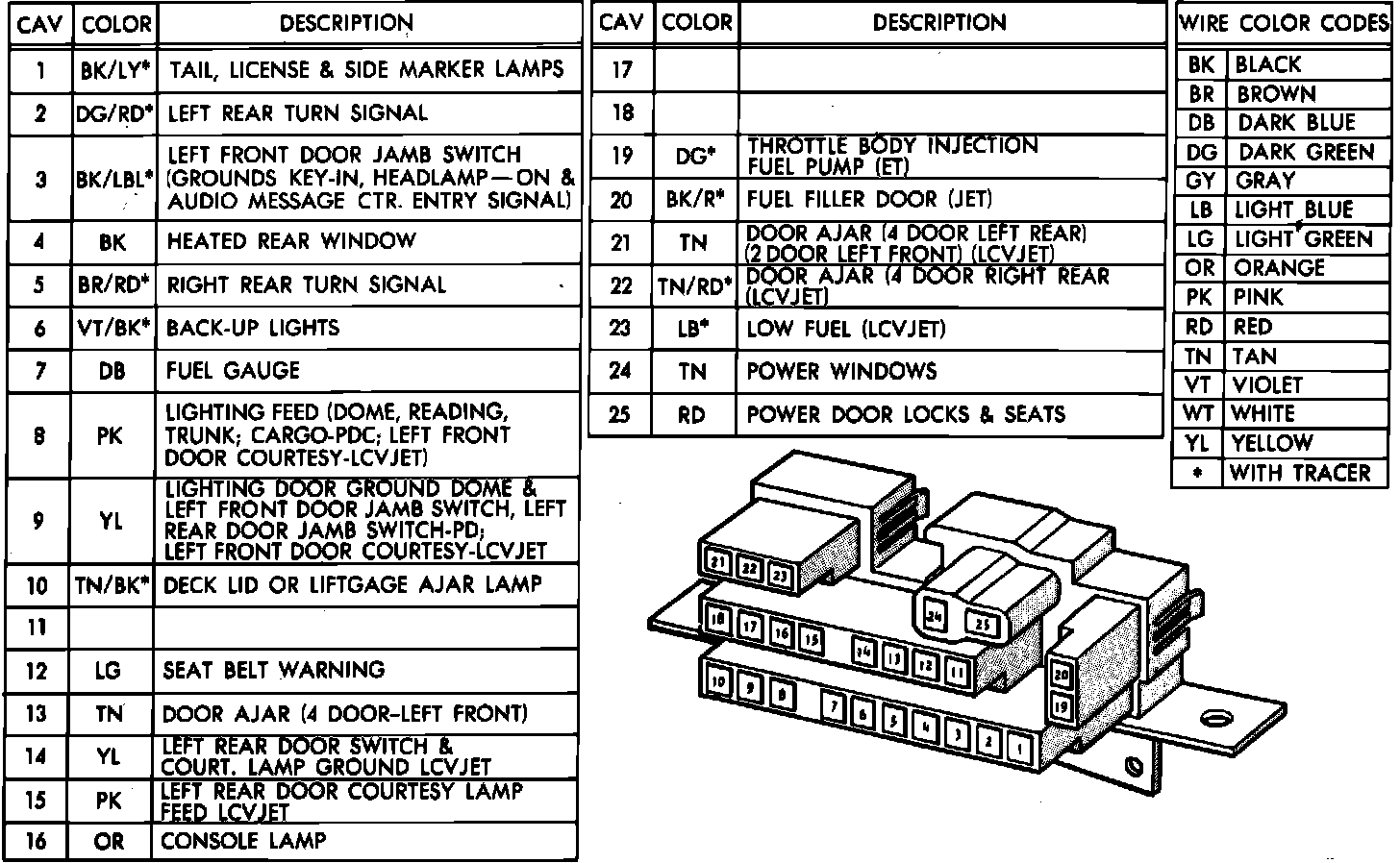

Fig. 12 Instrument To Body Connector (25 Way):
