Electrical Diagrams

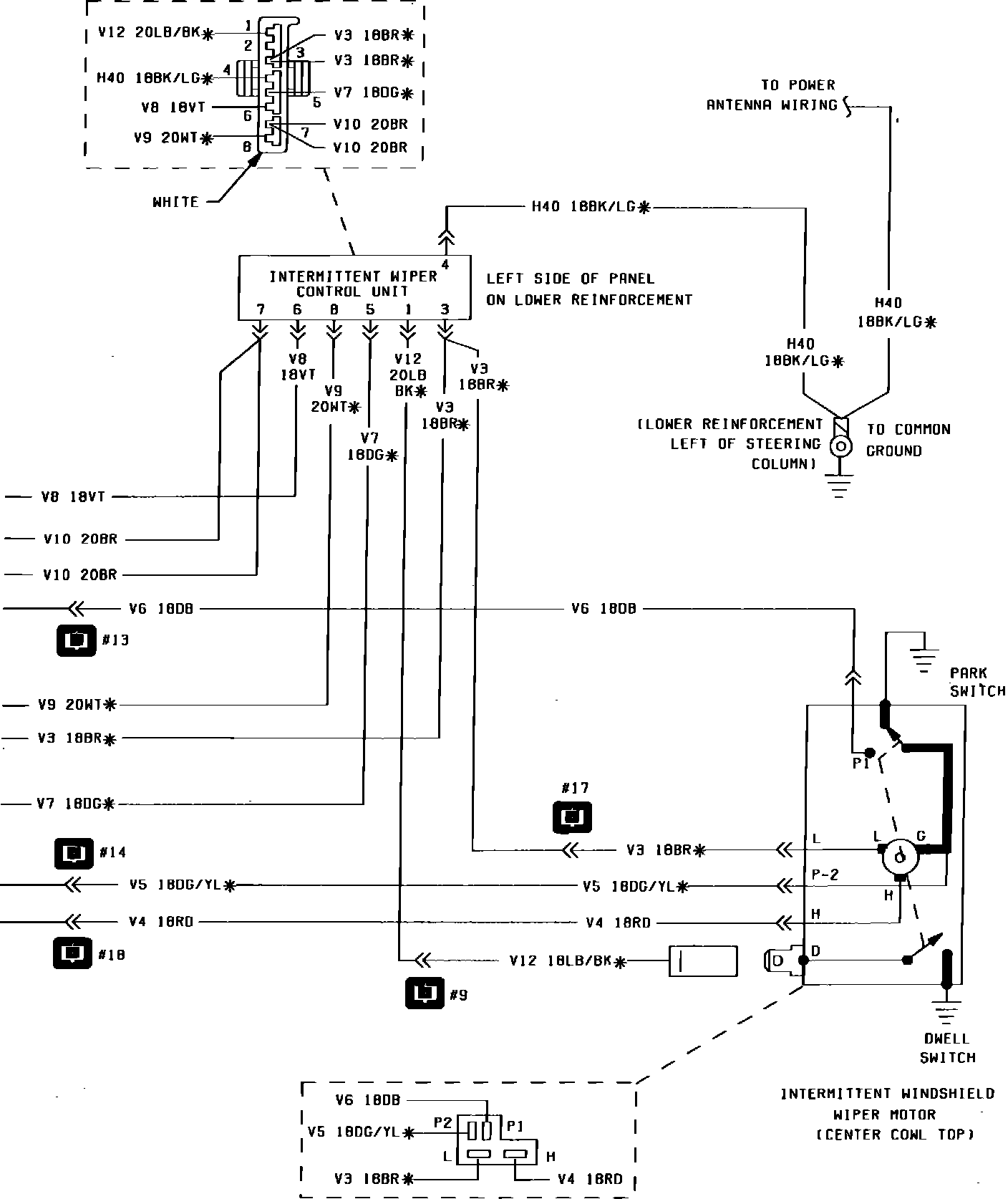

Fig. 28 Intermittent Wiper System Wiring Circuit. 1983 Imperial (Part 1 of 2):

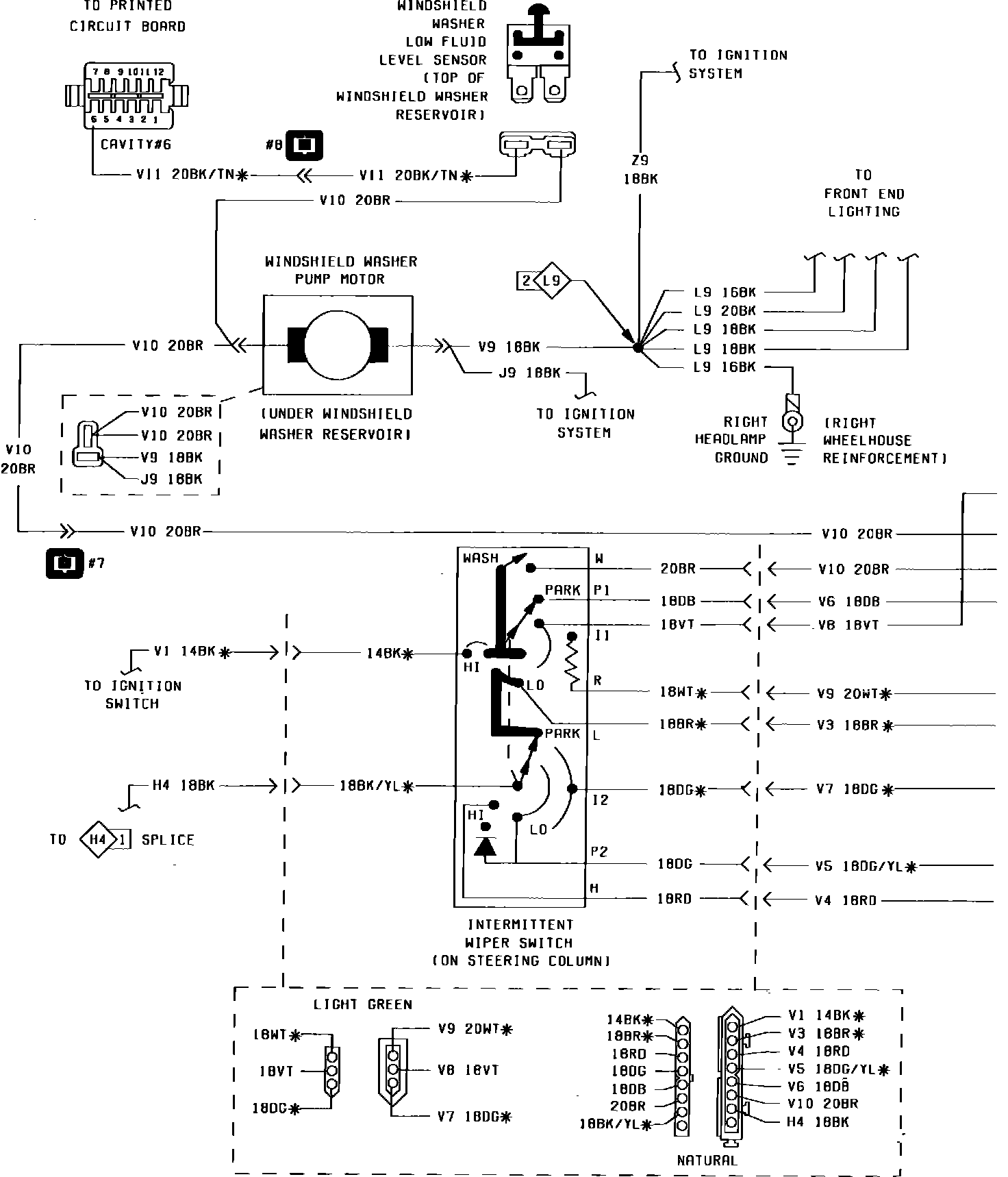

Fig. 28 Intermittent Wiper System Wiring Circuit. 1983 Imperial (Part 2 of 2):
