Chrysler
>>
1983
>>
Imperial V8-318 5.2L VIN N TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>
EFI System
EFI System

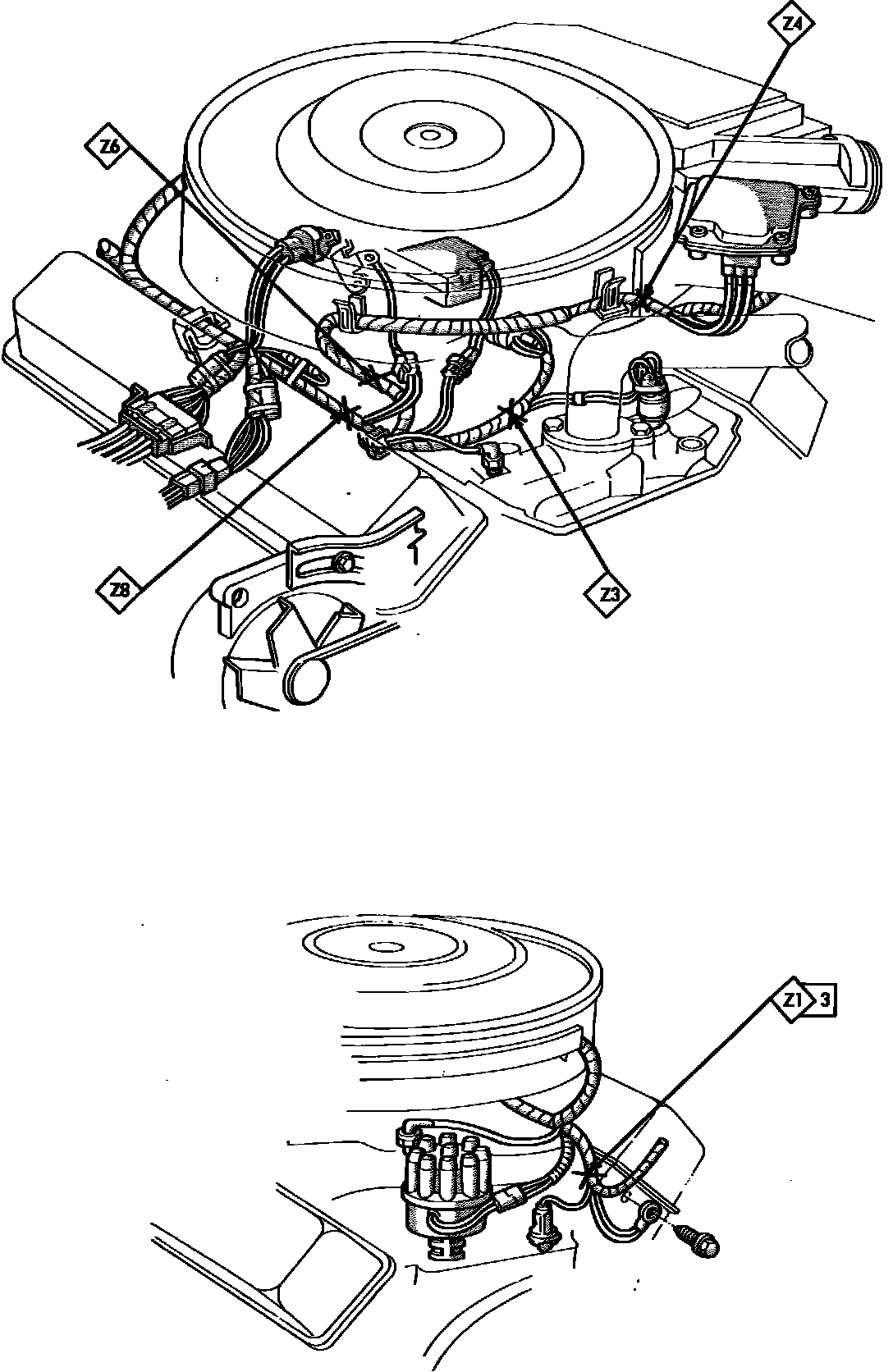

Fig. 39 Splice Locations (E.F.I. System). 1983 Imperial:
