Shift Indicator - A/T
Shift Indicator - A/T

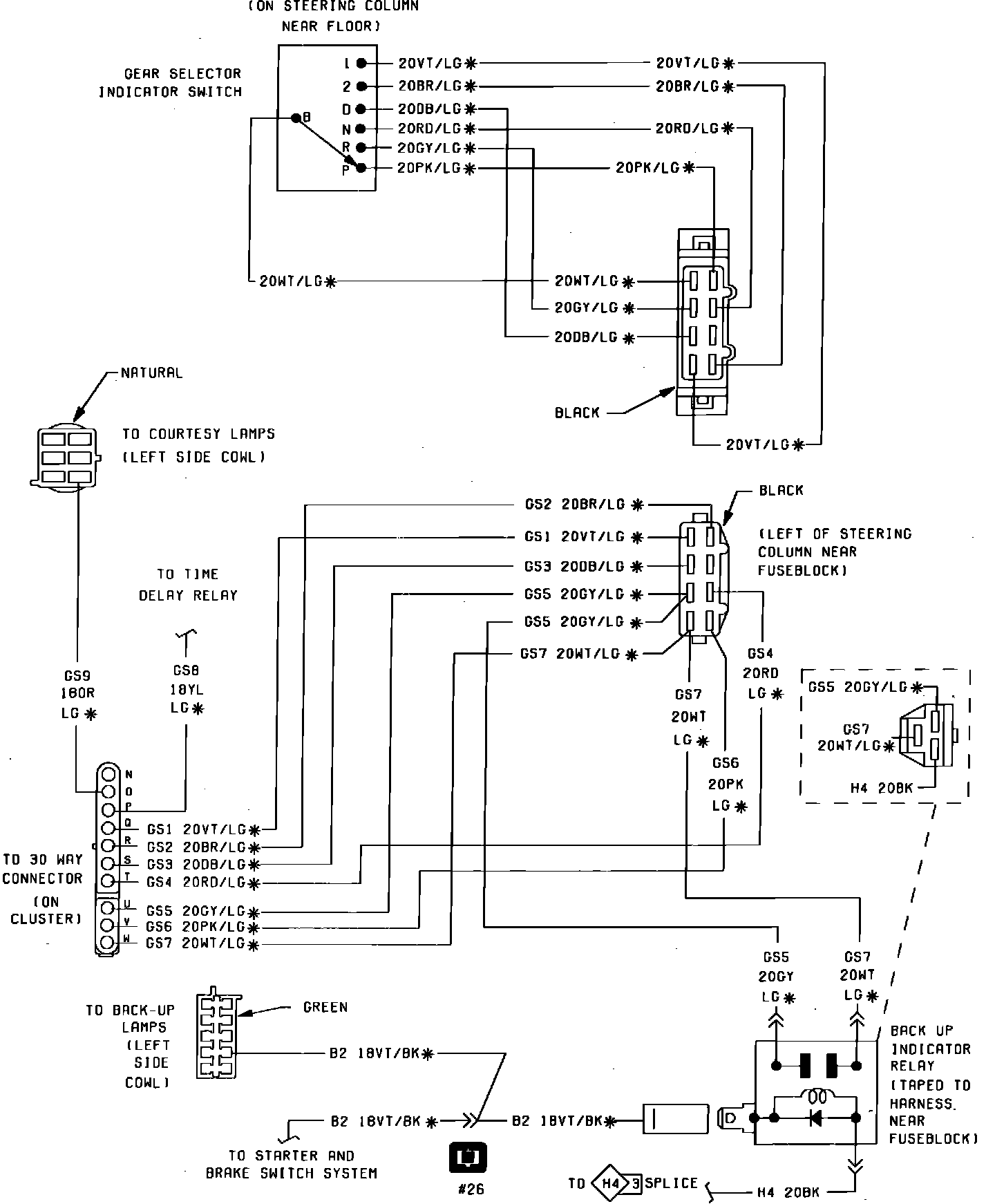

Fig. 20 Gear Selector Indicator System Wiring Circuit. 1983 Imperial:
