Part 1

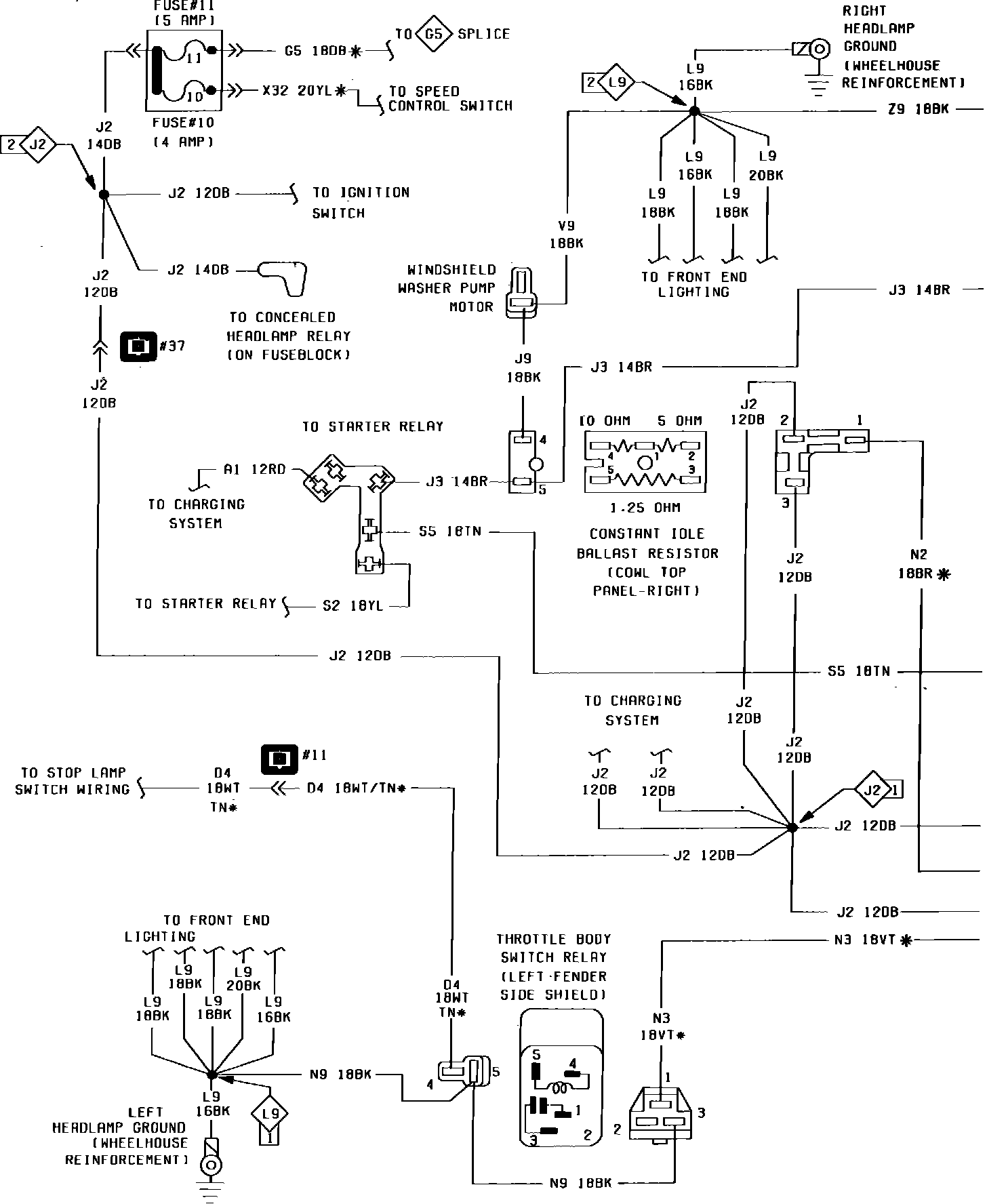

Fig. 15 Electronic Spark Advance System Wiring Circuit (Electronic Fuel Injection). 1983 Imperial (Part 1 of 4):
