Heated Glass Element
Heated Glass Element

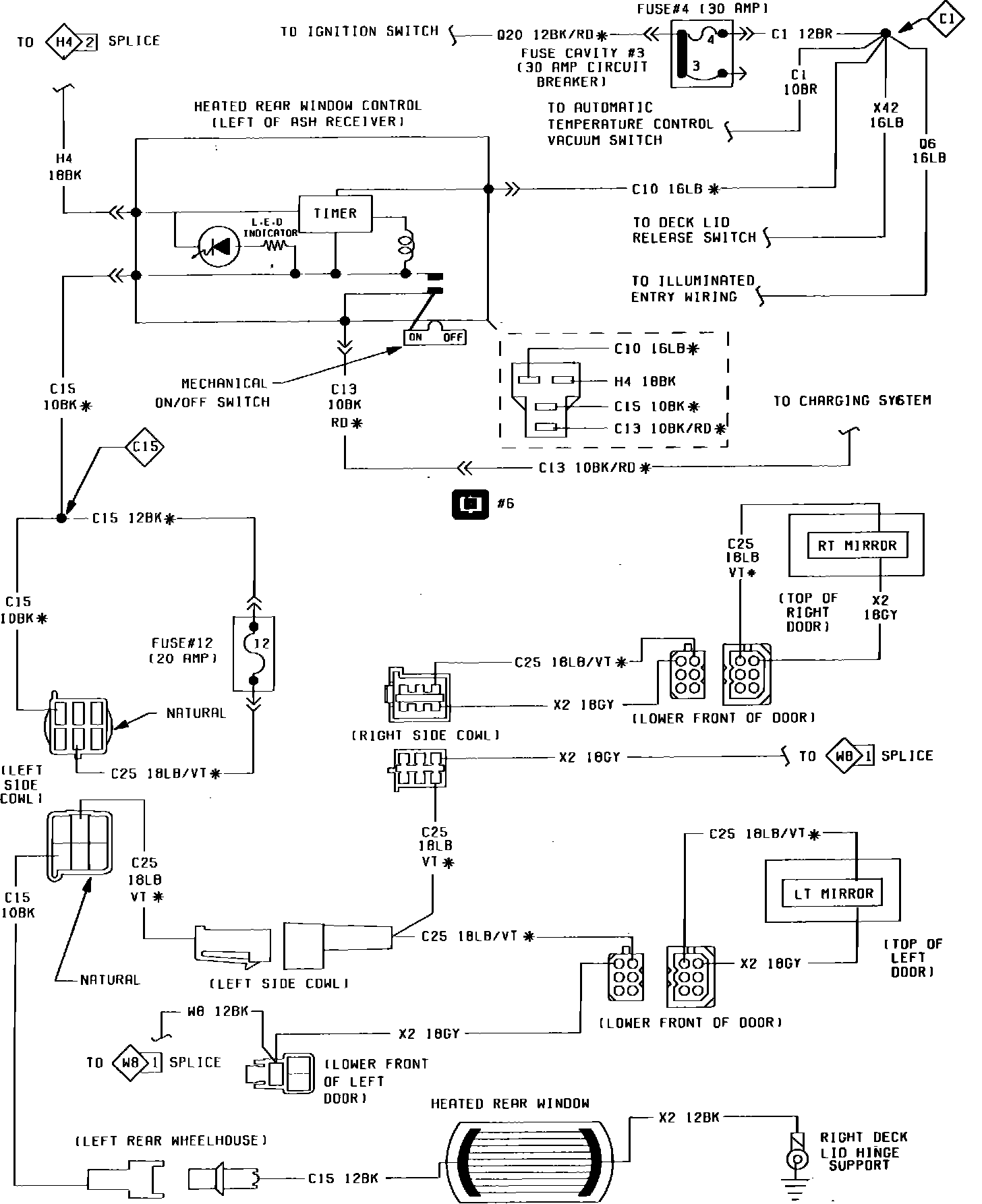

Fig. 23 Heated Rear Window & Side View Mirror Wiring Circuit. 1983 Imperial:
