Home
>>
Chrysler
>>
1983
>>
Imperial V8-318 5.2L VIN N TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cigarette Lighter
Cigarette Lighter

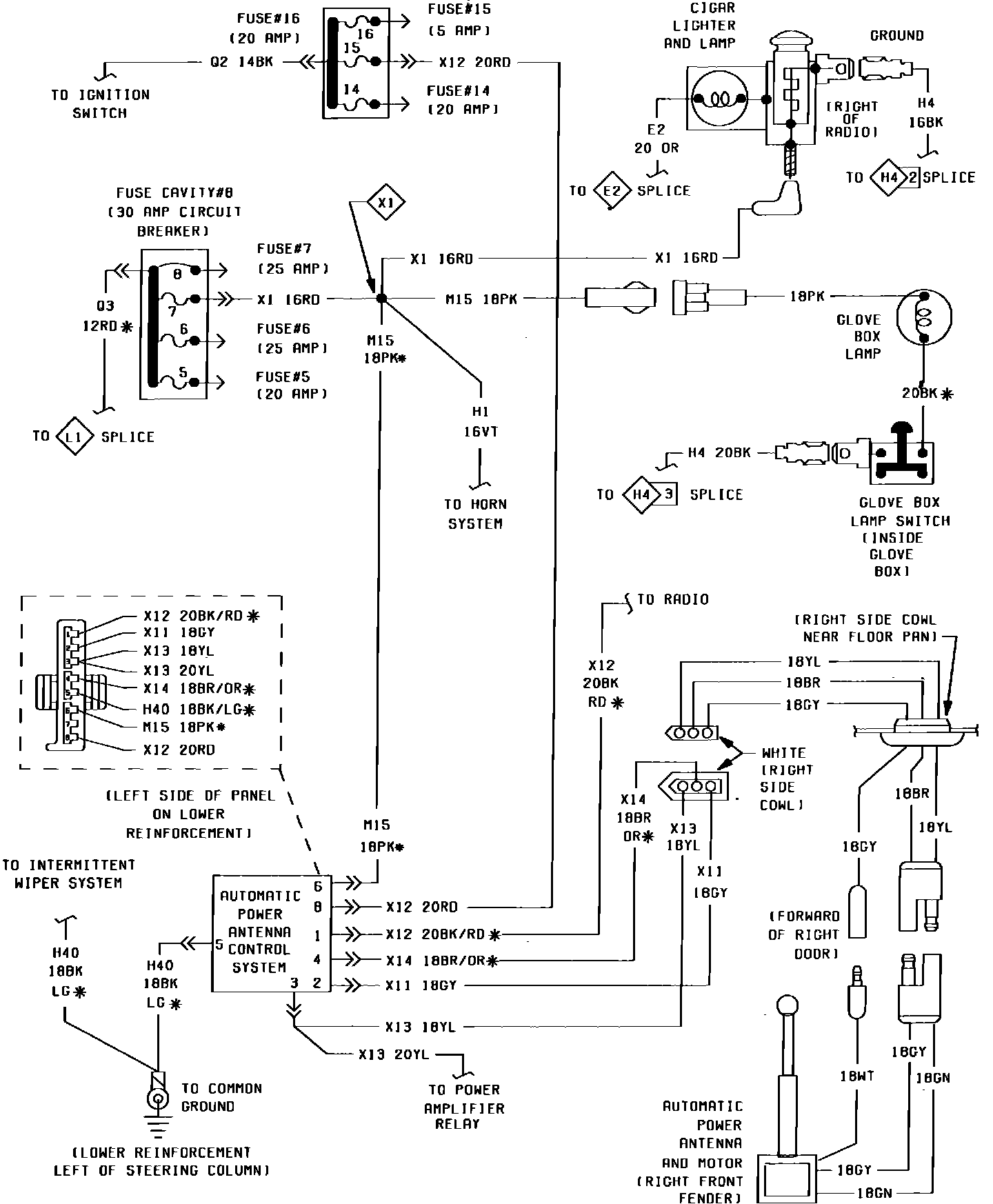

Fig. 10 Cigar Lighter, Glove Box Lamp & Power Antenna Wiring Circuit. 1983 Imperial:
