Cordoba V8-318 5.2L VIN P 2-bbl
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Service and Repair
>>
Overhaul
>>
Kickdown Band
Kickdown Band
Kickdown
Band

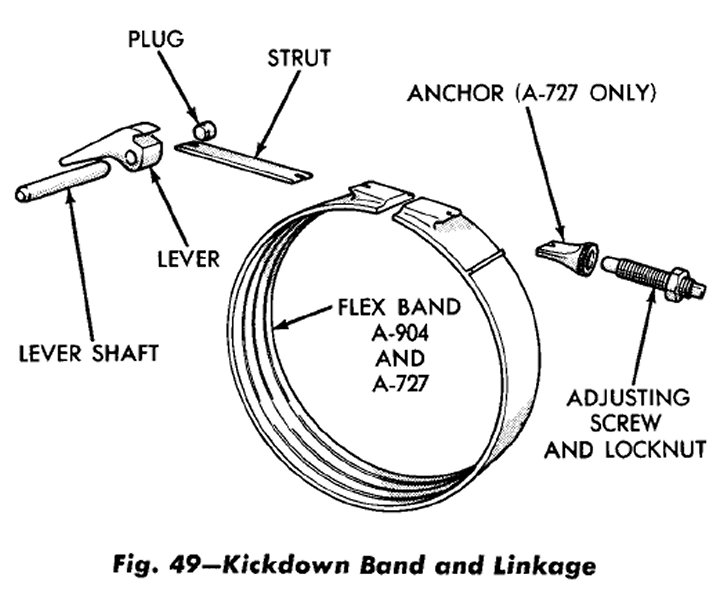

Figure 49 shows a disassembled view of the kickdown
band
assembly.
(1)
Slide
band
over front clutch assembly.
(2)
Install
band
strut, screw in adjuster just enough to hold strut and anchor in place.
