Governor and Support

Governor and Support

(1) Position support and governor body assembly on the output align assembly so governor valve shaft hole in governor body aligns with hole in output shaft, then slide assembly into place. Install snap ring behind the governor body. Tighten body to support self-locking bolts to 100 in. lbs. (11 N.m).
(2) Place governor valve on valve shaft, insert assembly into body and through governor weights. Install valve shaft retaining snap ring.

Output Shaft Bearing and Extension Housing

(1) Install a snap ring in the front groove (A-727 only) on output shaft. Install bearing on shaft with its outer race ring groove toward front. Press or tap bearing tight against front snap ring (or shoulder on A-904) then install rear snap ring.
(2) Place a new extension housing gasket on the transmission case. Position output shaft bearing retaining snap ring in the extension housing. Spread snap ring as far as possible then carefully tap extension housing into place. Make sure snap ring is fully seated in the bearing groove.
(3) Install and tighten extension housing bolts to 24 ft. lbs. (33 N.m).

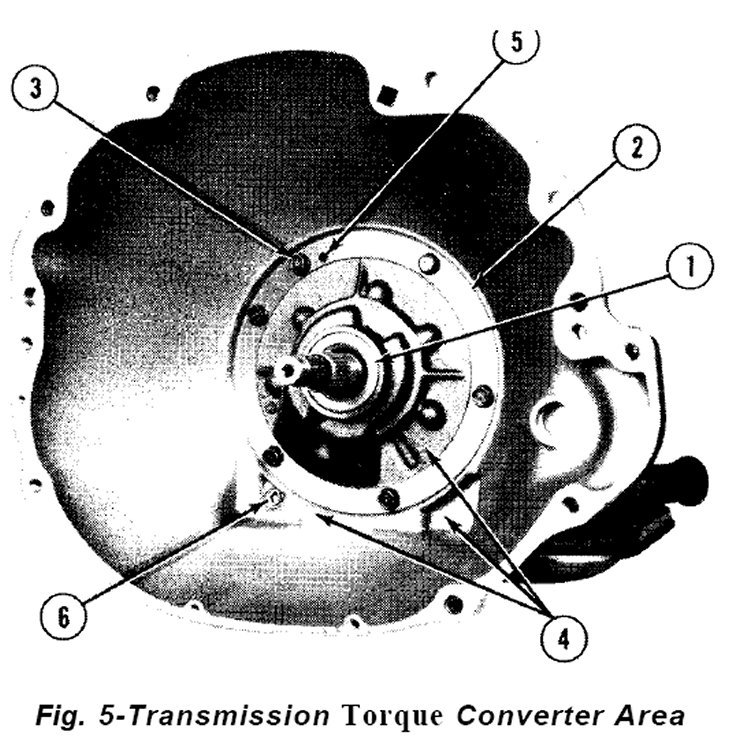

(4) Install gasket, plate, and two screws on bottom of extension housing mounting pad. Measure input shaft end playas described under "Disassembly-Subassembly Removal." Correct if necessary (Fig. 5).
