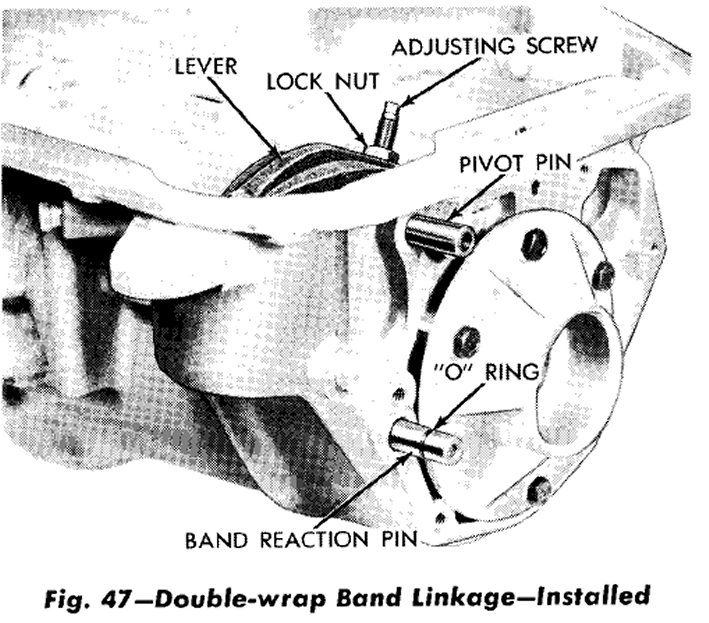

Double-Wrap Low-Reverse Band (Fig. 47 and 48)

Double-wrap Low-Reverse Sand (figs. 47 and 48)











These transmissions have a double-wrap band supported at two points by a band reaction pin in the case and acted upon at one point by the servo lever adjusting screw.
(1) Push band reaction pin (with new "0" ring) into case flush with gasket surface.
(2) Place band into case resting two lugs against band reaction pin.
(3) Install low-reverse drum into overrunning clutch and band.
(4) Install operating lever with pivot pin flush in case and adjusting screw touching center lug on band.
