Integrated Control Unit (ICU) - Disassembly

DISASSEMBLY





1. If necessary, remove the mounting pins from the ICU.

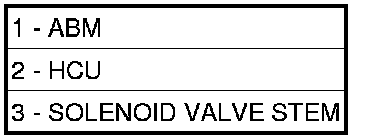

2. Remove the four screws (1) attaching the ABM (2) to the HCU.










3. Separate the ABM (1) from the HCU (2).
