Chrysler Truck
>>
1999
>>
Town & Country LWB AWD V6-3.8L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
Power Door Lock Switch

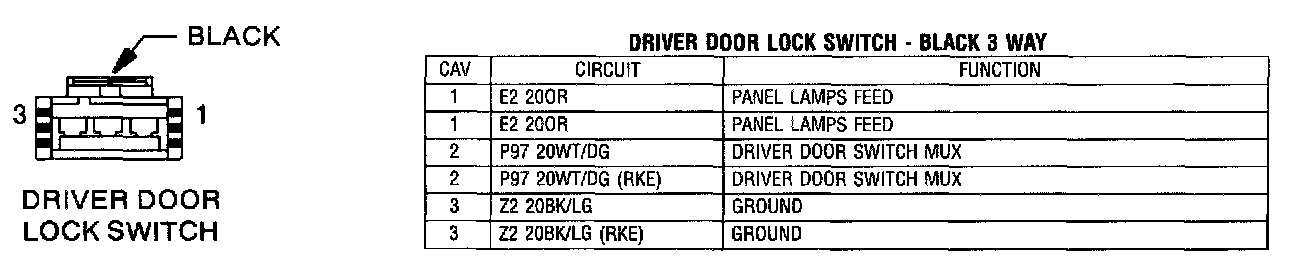

Driver Door Lock Switch:

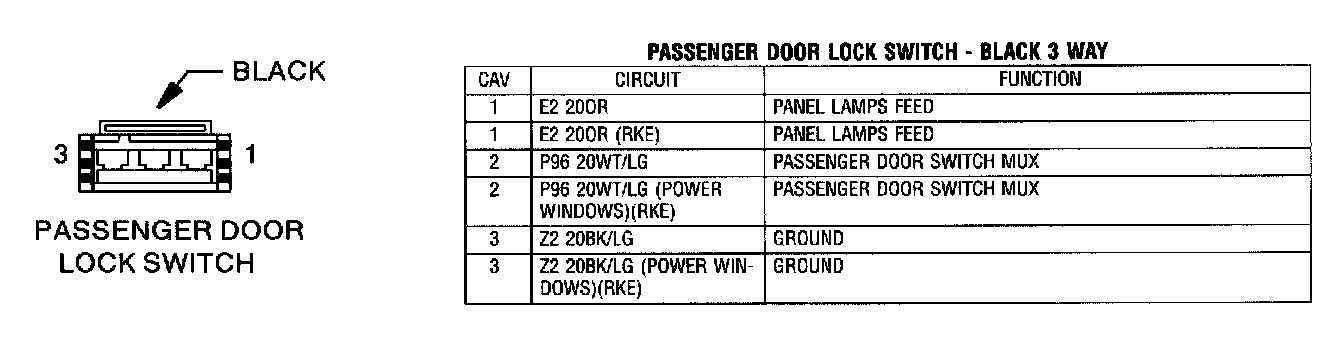

Passenger Door Lock Switch:
