Memory Positioning Switch: Testing and Inspection

To test the memory selector switch:
1. Remove the memory selector switch. Refer to Memory Selector Switch Replacement.

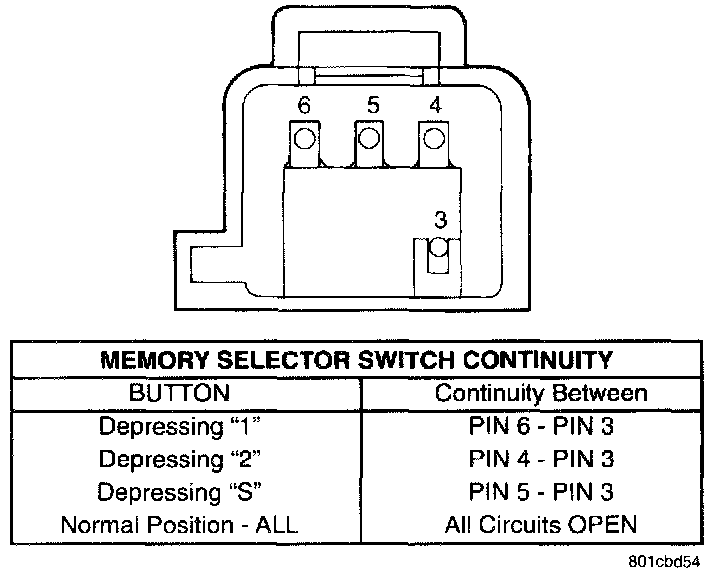

Memory Selector Switch Continuity:

2. Using an ohmmeter check continuity reading between switch pins. Refer to the image for proper Pin numbers.
