Chrysler Truck
>>
1992
>>
Town & Country Van V6-201 3.3L VIN R MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Body Control Module
>>
Diagrams
>>
Electrical Diagrams
>>
Wiring Diagrams
Wiring Diagrams

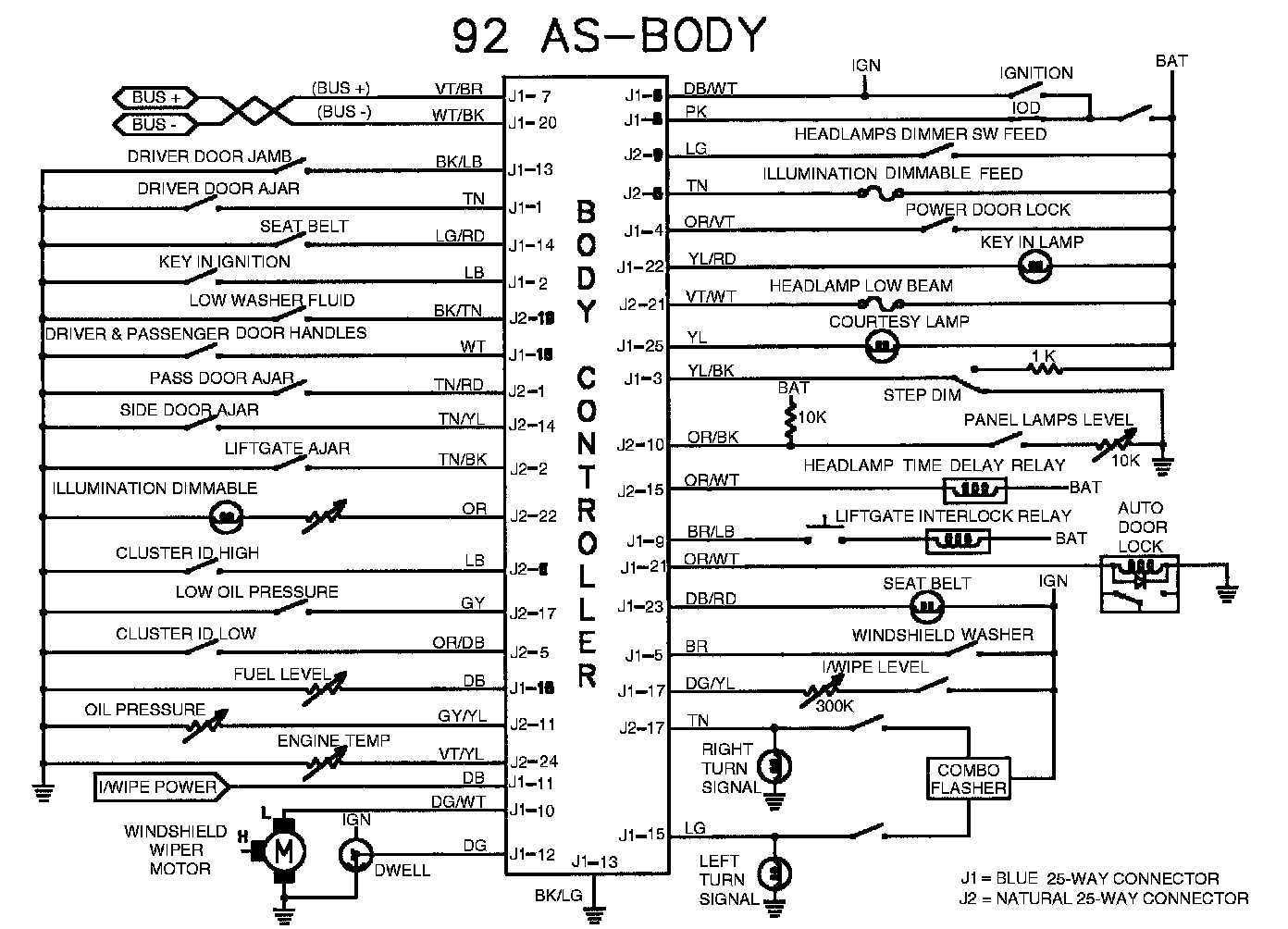

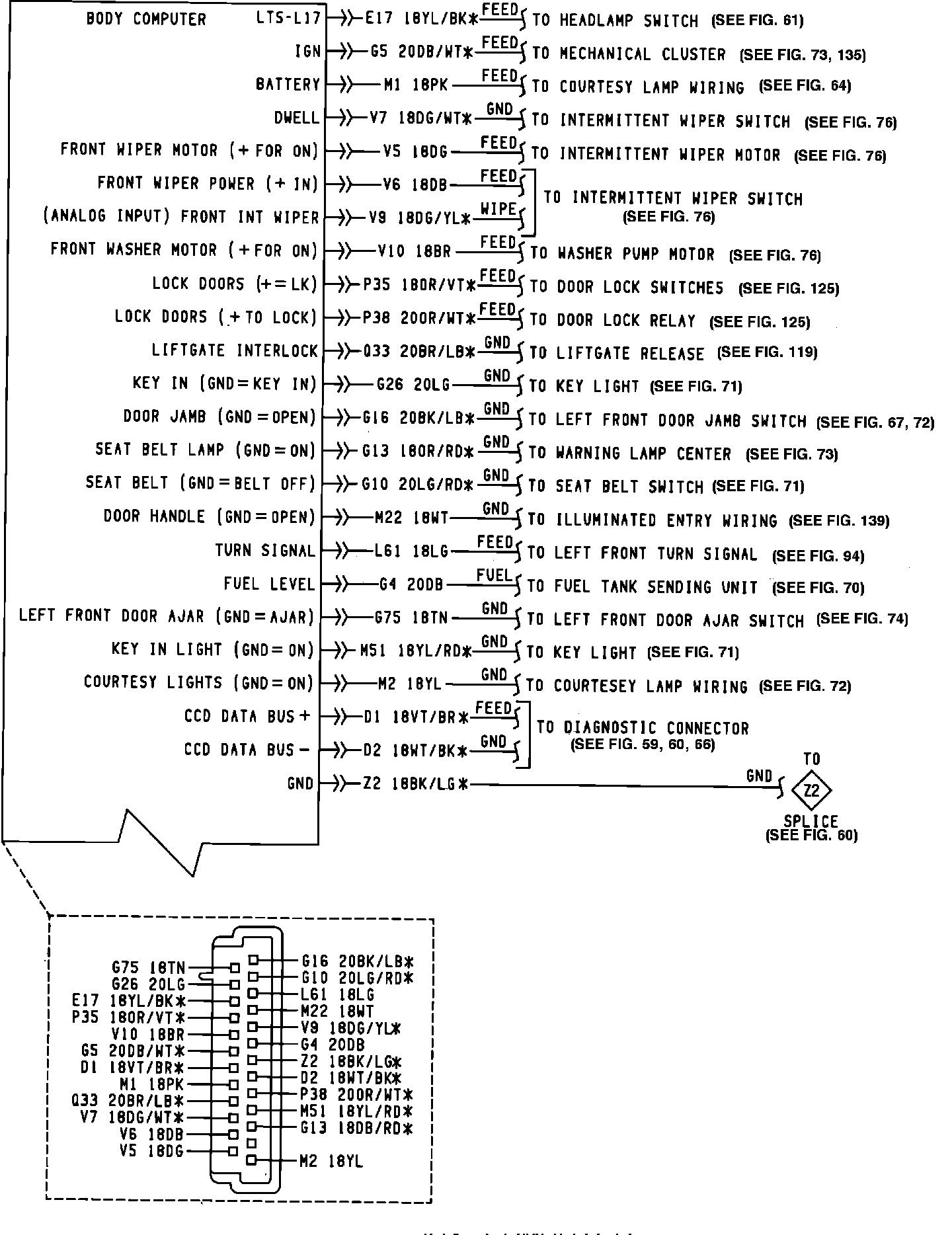

Body Computer:

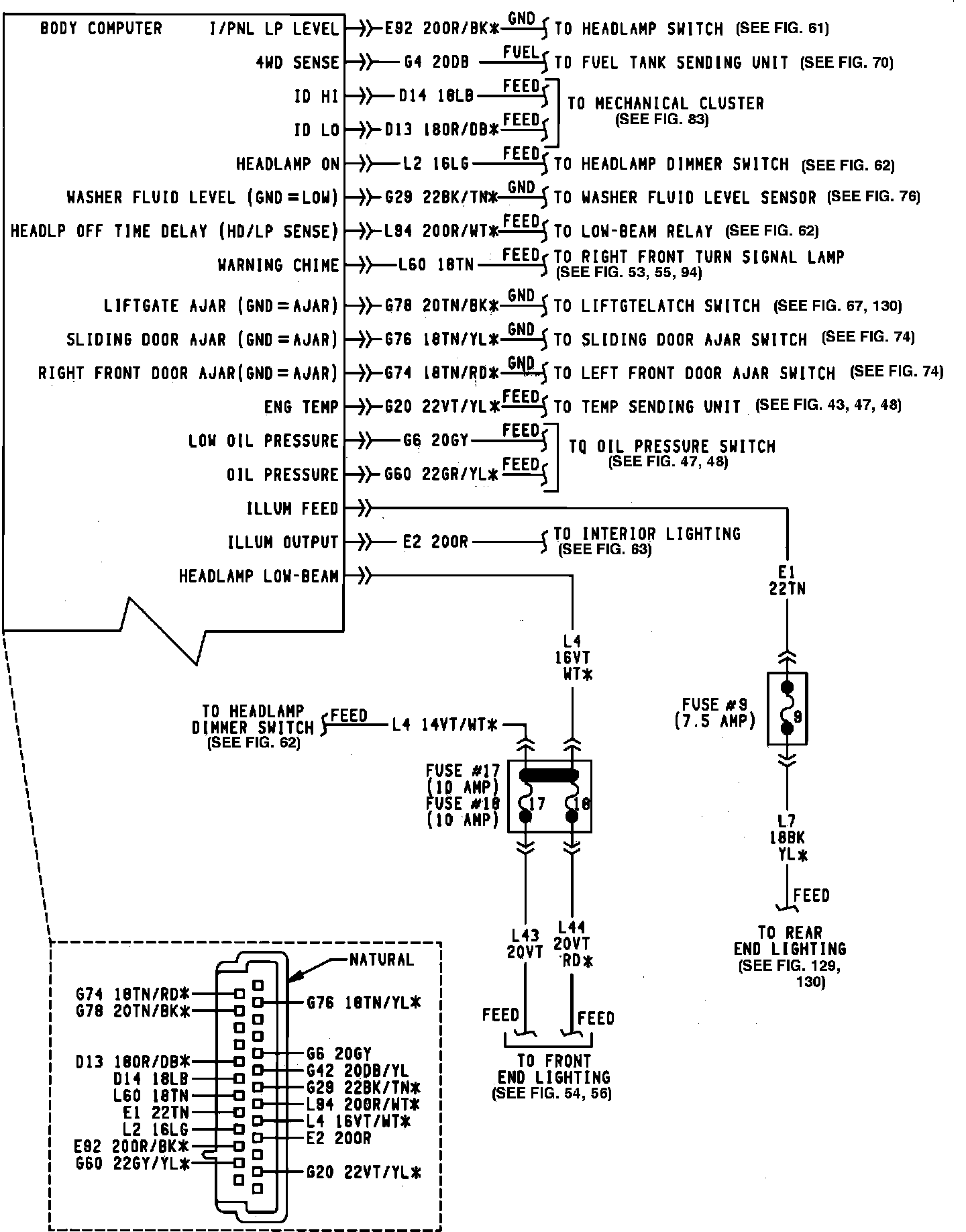

Body Computer:
