Town & Country Van V6-201 3.3L VIN R MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Relay Box
>>
Fuse Block
Fuse Block

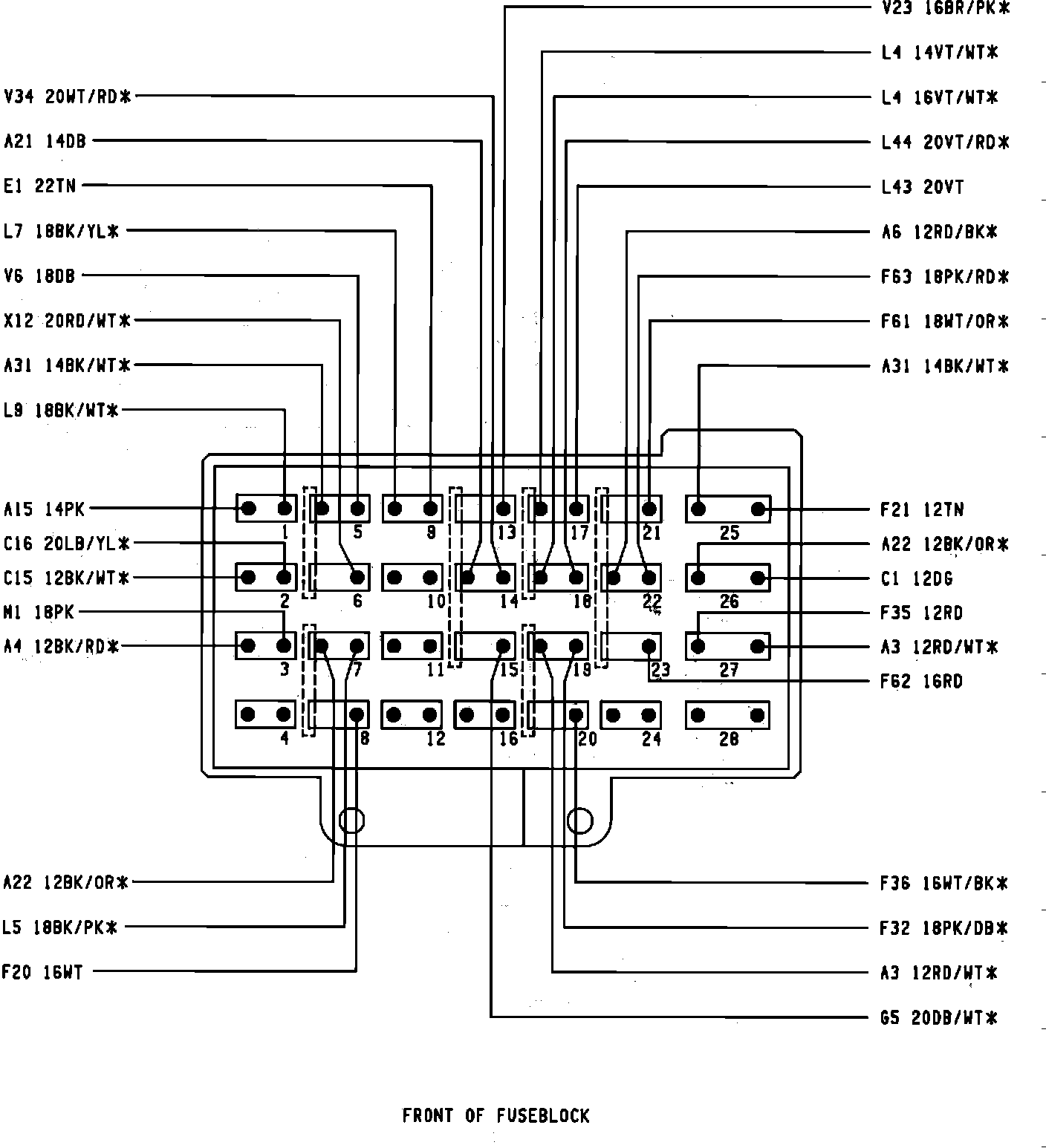

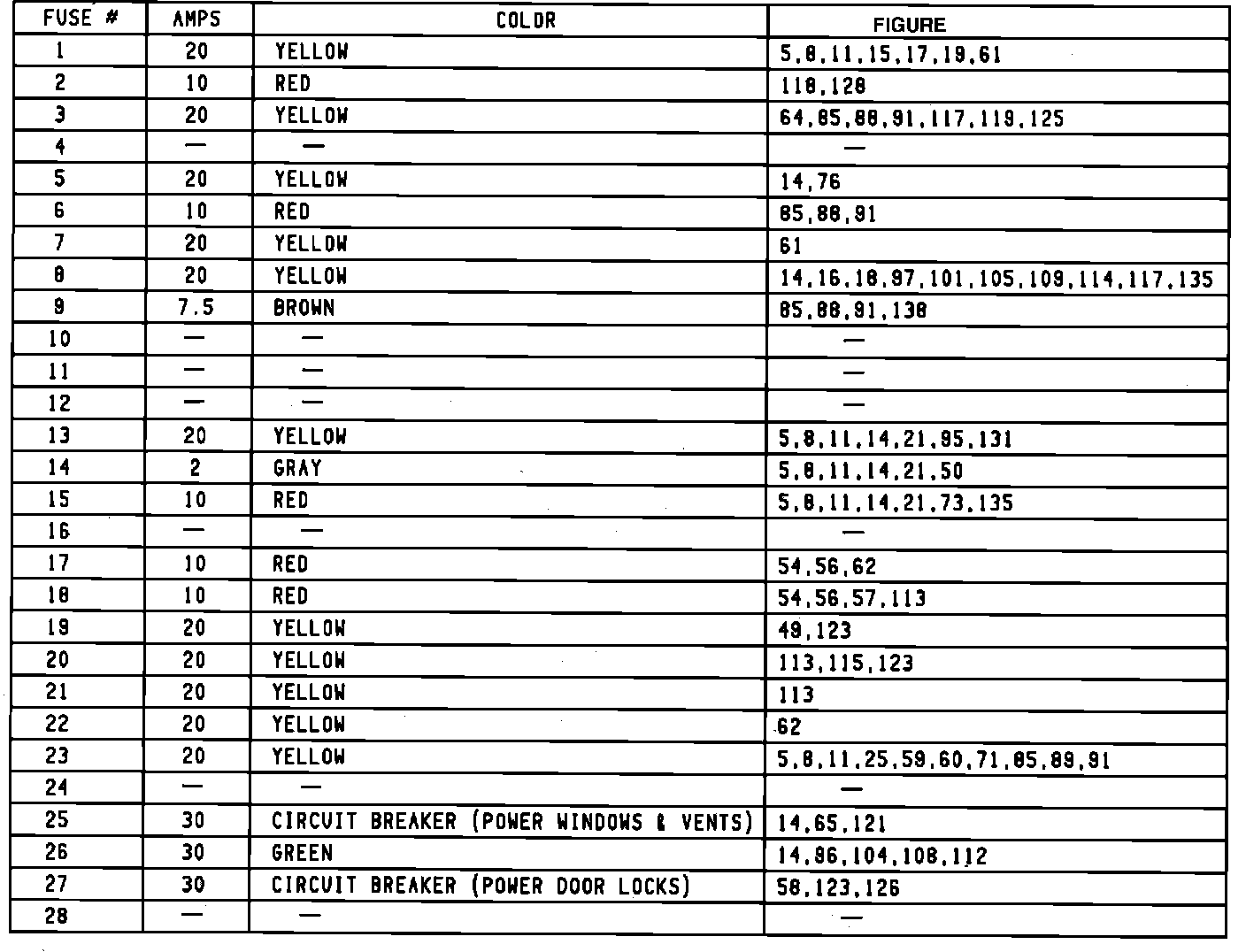

Fuse Block Module:
Fuse Block Module:
