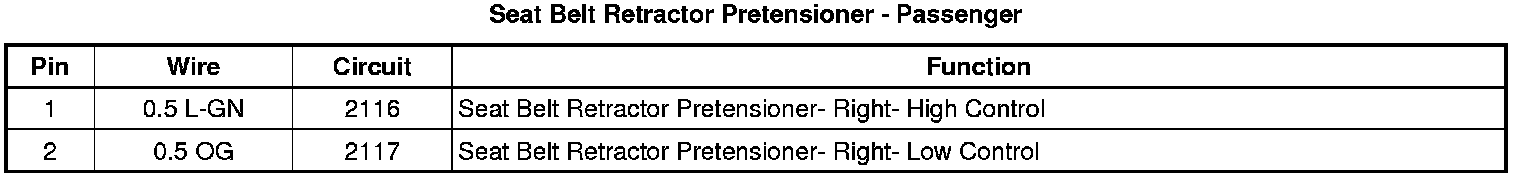

Seat Belt Retractor Pretensioner - Passenger
Seat Belt Retractor Pretensioner - Passenger

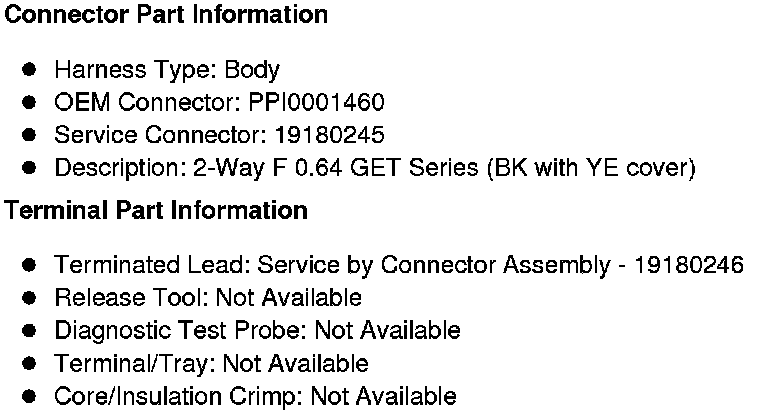

Component Connector End Views
Seat Belt Retractor
Pretensioner - Passenger
