Diesel Emissions Fluid Control Module
>>
Reductant Sensor Module X1
Reductant Sensor Module X1

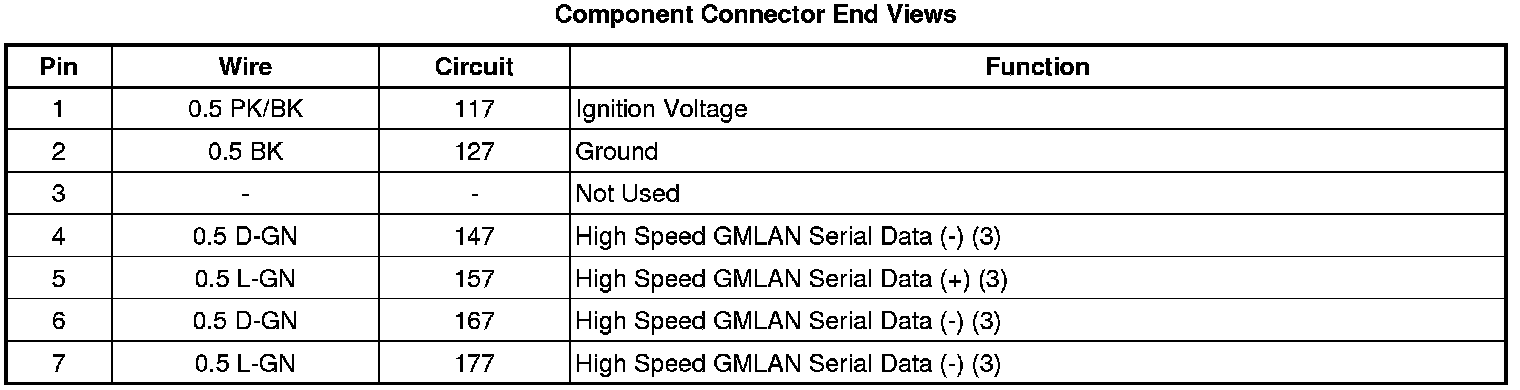

Component Connector End Views

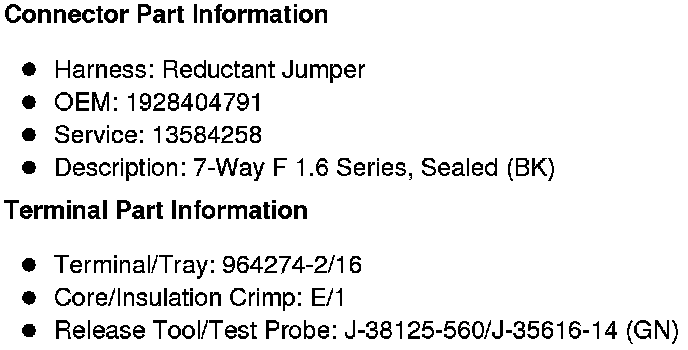

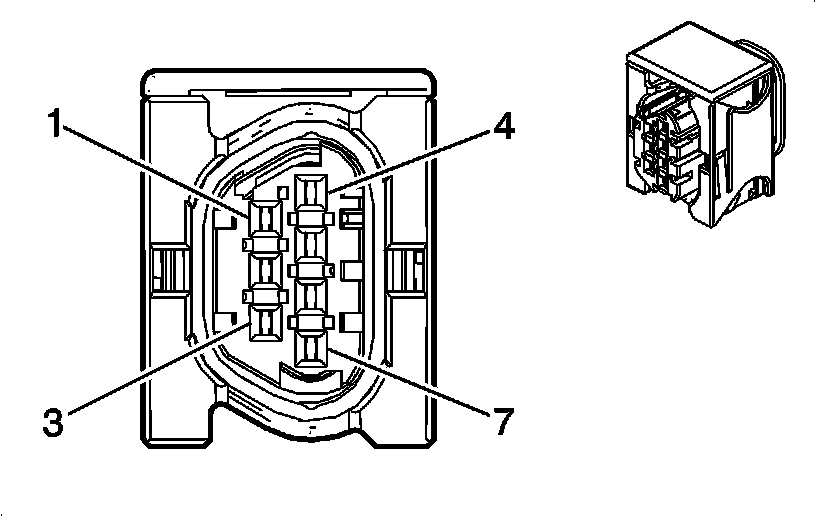

Reductant Sensor Module X1 (Diesel)
