Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2013
>>
Silverado 1500 4WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Radio X1 (without UYS or UL5)
Radio X1 (without UYS or UL5)

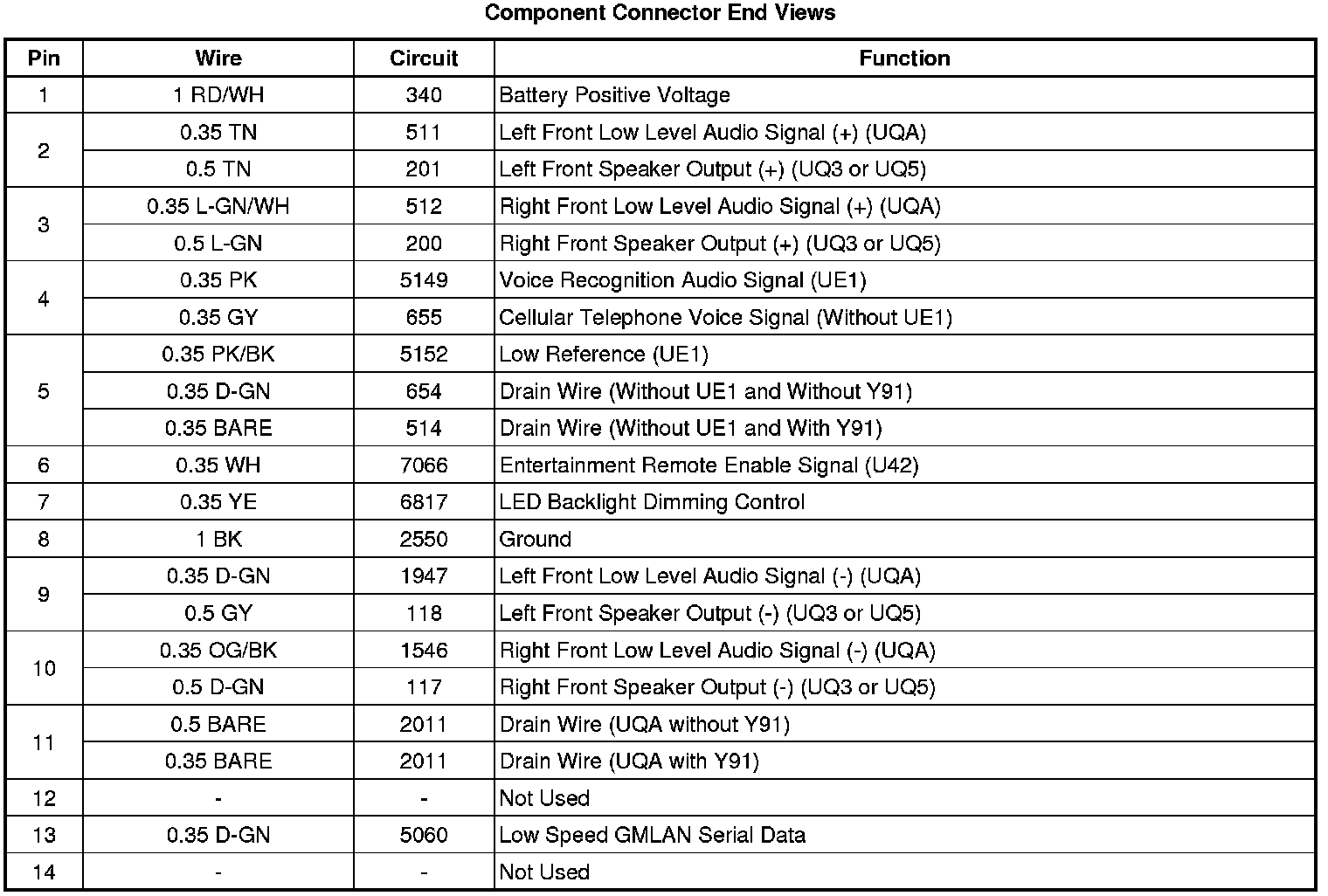

Component Connector End Views

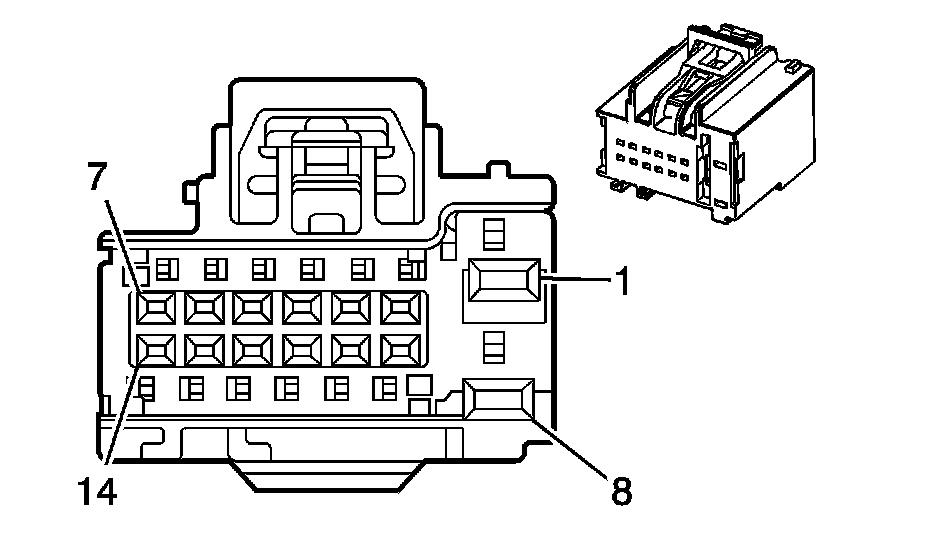

Radio X1 (without UYS or UL5)
