Ground Distribution Schematics
>>

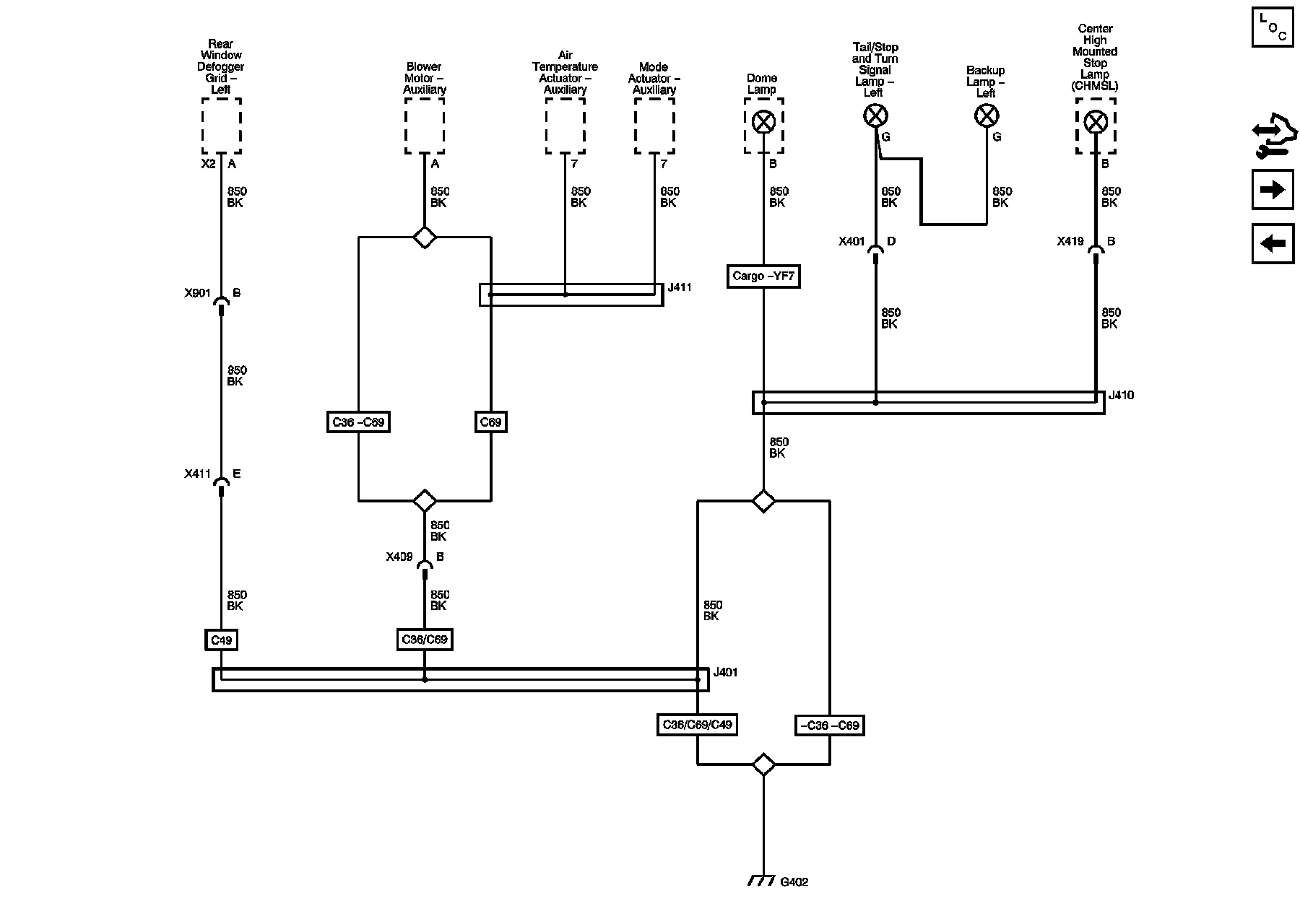

G402 (Passenger or Cargo)
G402 (Passenger or Cargo)
Ground Distribution Schematics
G402 (Passenger or Cargo)
