Chevy Truck
>>
2013
>>
Express 2500 V8-4.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Schematics
>>
G400
G400

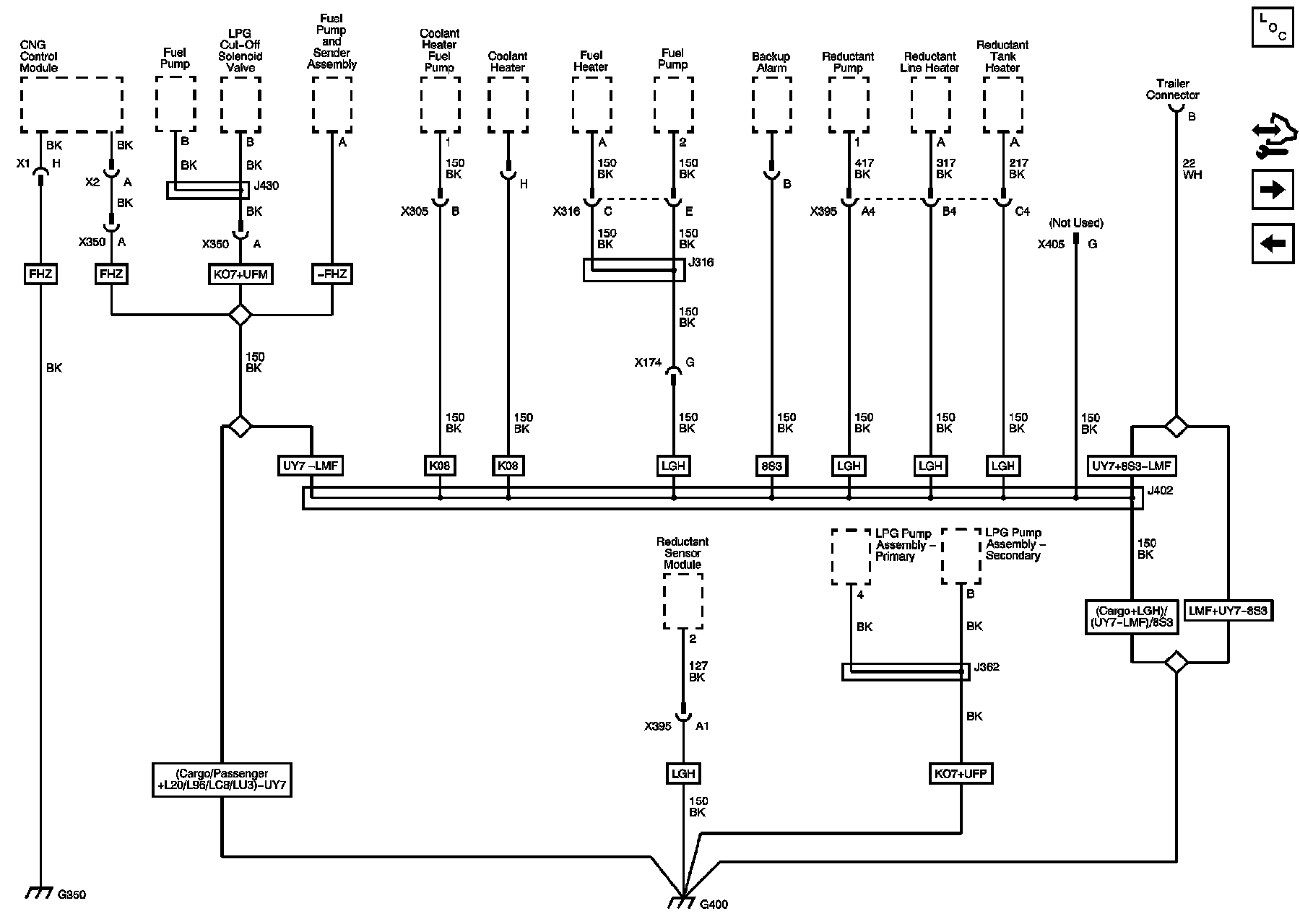

Ground Distribution Schematics
G350 and G400
