Impact Sensor
>>
Inflatable Restraint Front End Sensor
Inflatable Restraint Front End Sensor

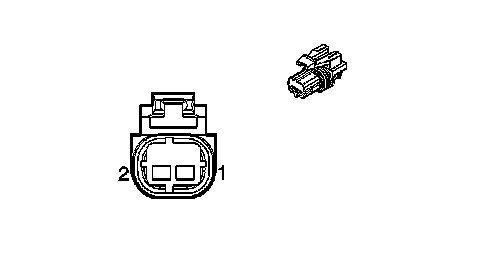

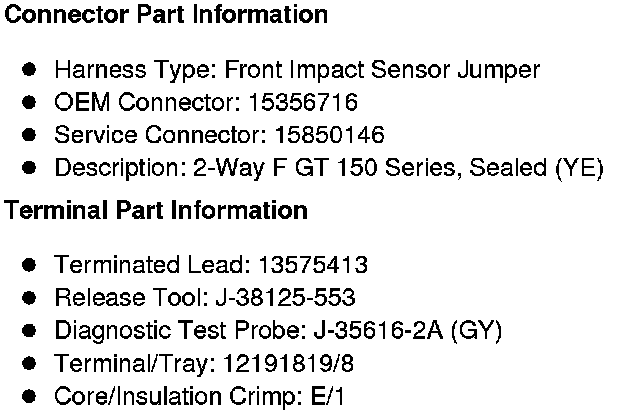

Component Connector End Views

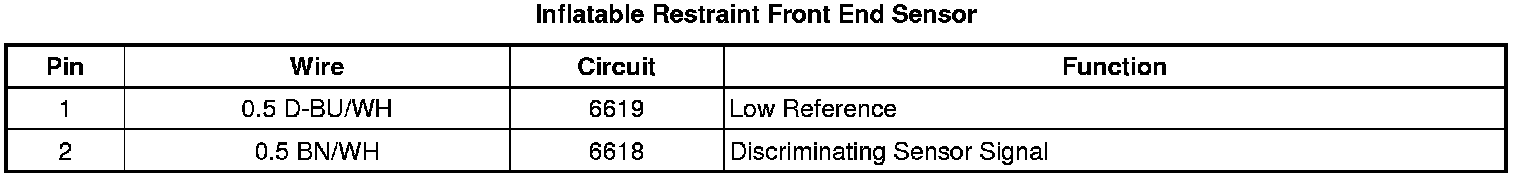

Inflatable Restraint Front End Sensor
