Home
>>
Chevy Truck
>>
2013
>>
Express 2500 V8-4.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>

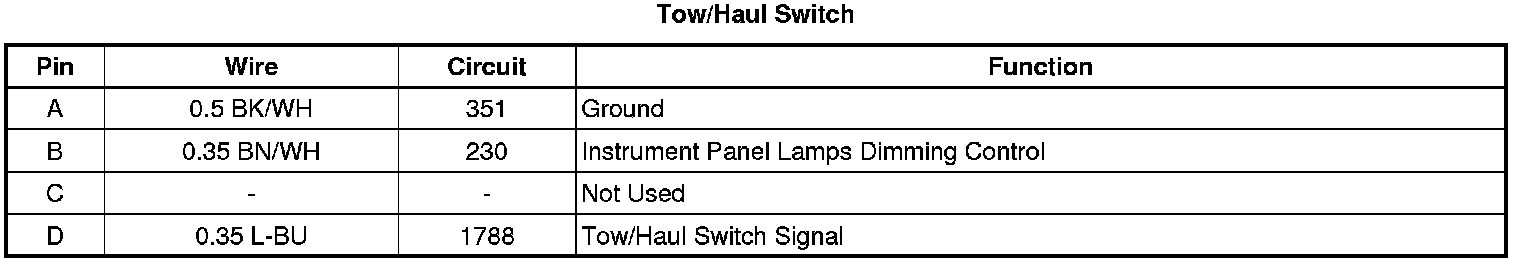

Tow/Haul Switch
Tow/Haul Switch

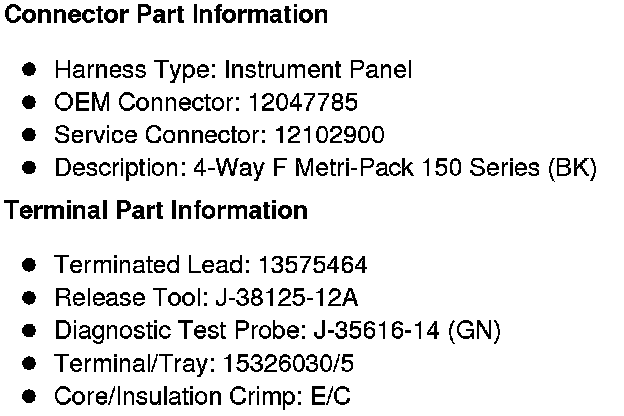

Component Connector End Views
Tow/Haul Switch
