Backup Lamp - Left (Passenger or Cargo)
Backup Lamp - Left (Passenger or Cargo)
Component Connector End Views

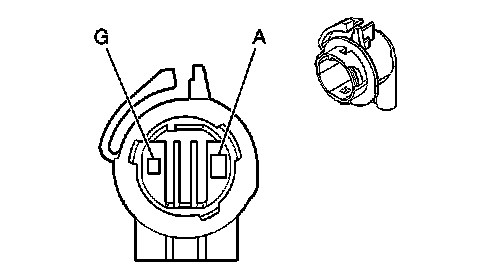

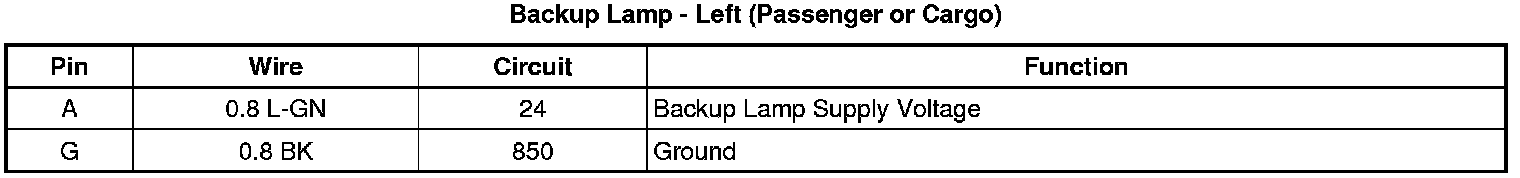

Backup Lamp - Left (Passenger or Cargo)
