Front Differential Transfer Drive Gear Support Assembly Assemble




Front Differential Transfer Drive Gear Support Assembly Assemble

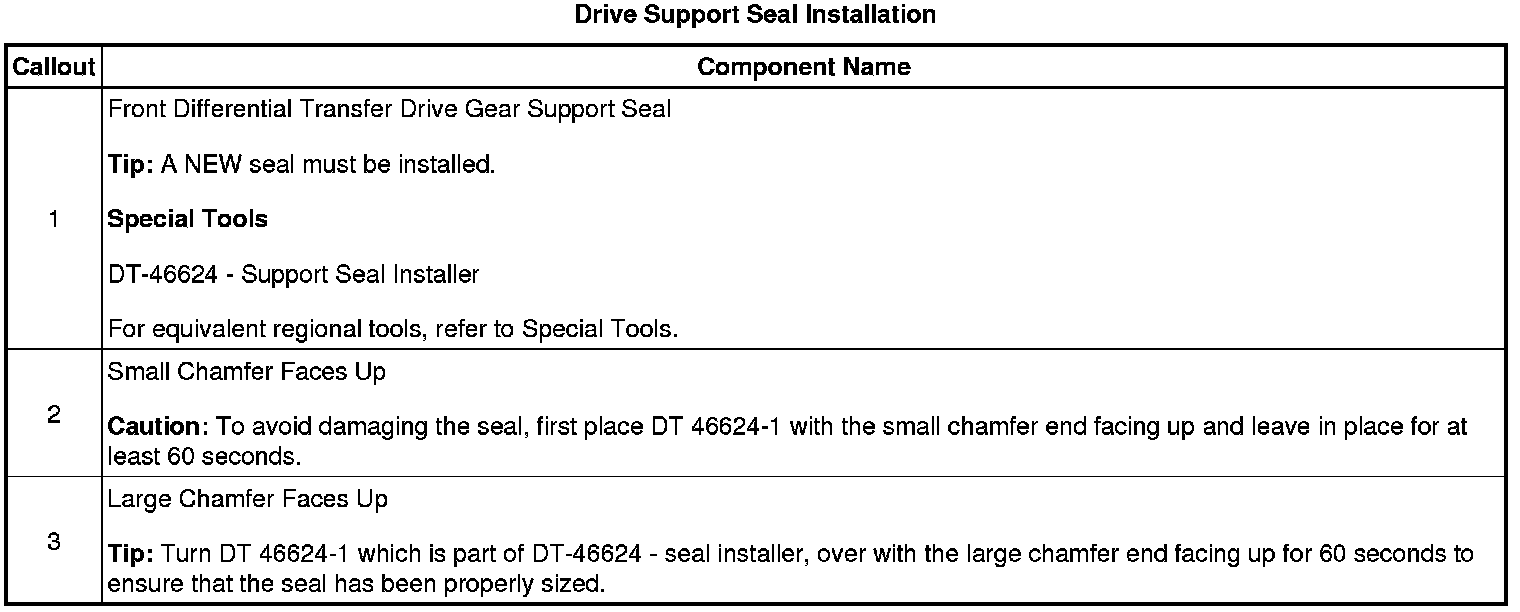

Drive Support Seal Installation

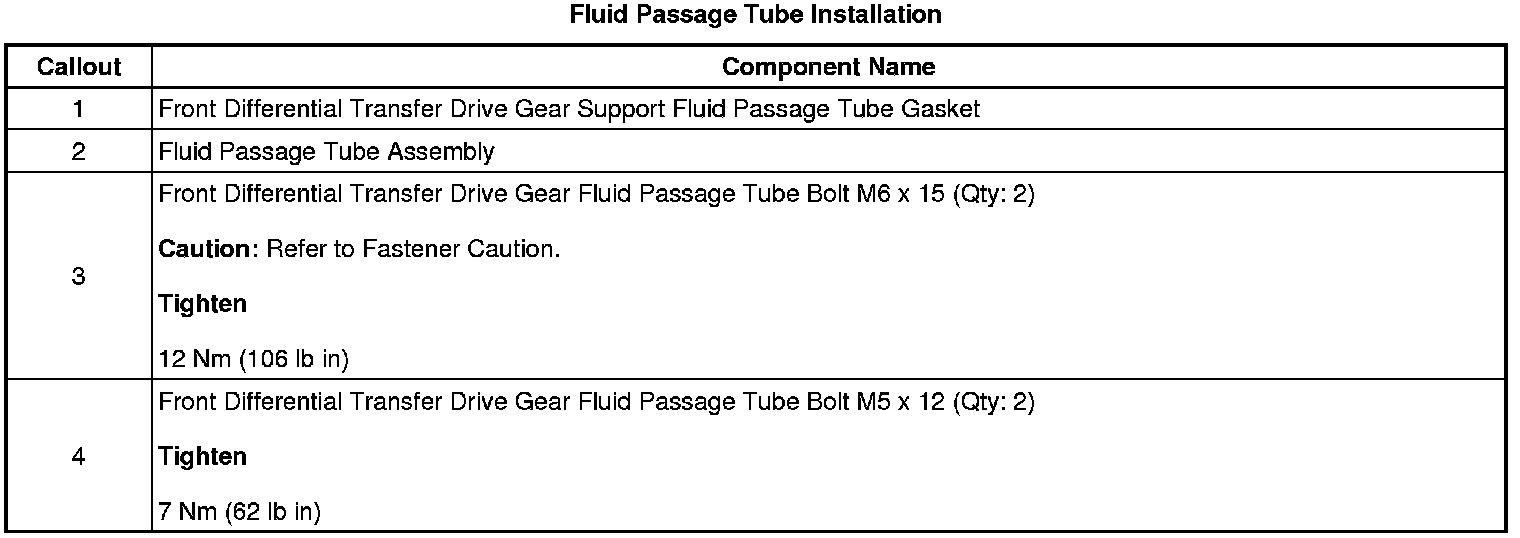

Fluid Passage Tube Installation

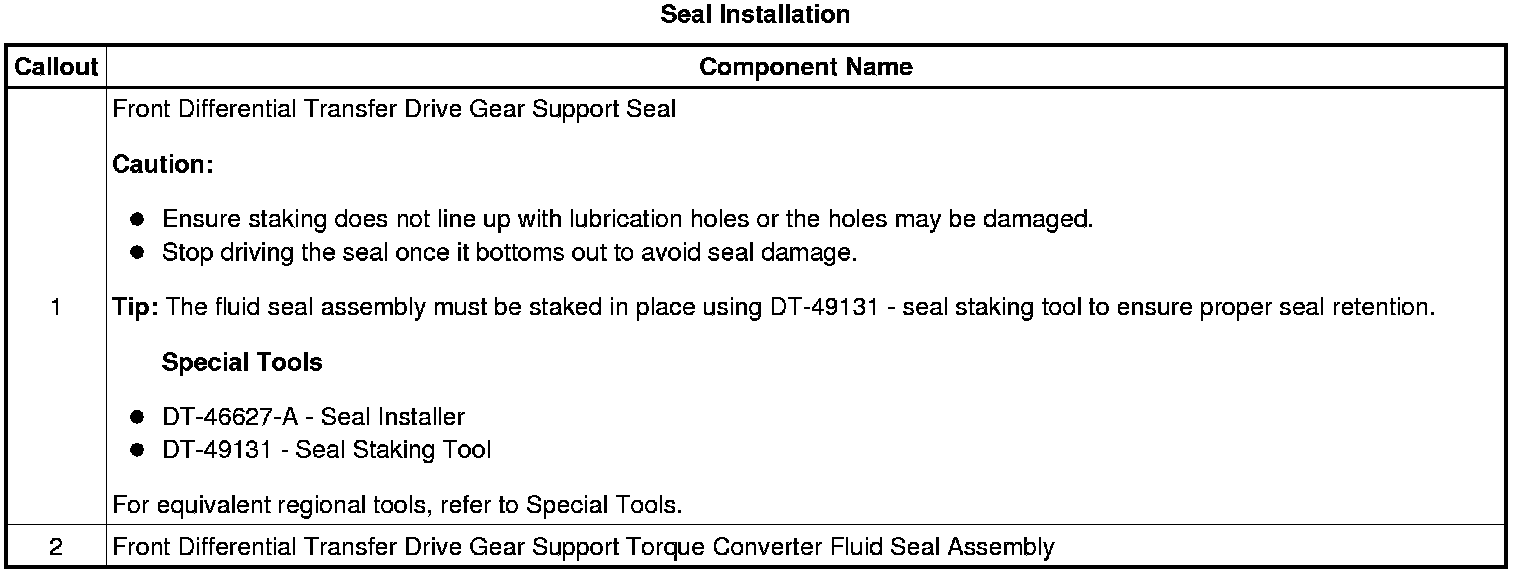

Seal Installation
