Water Pump

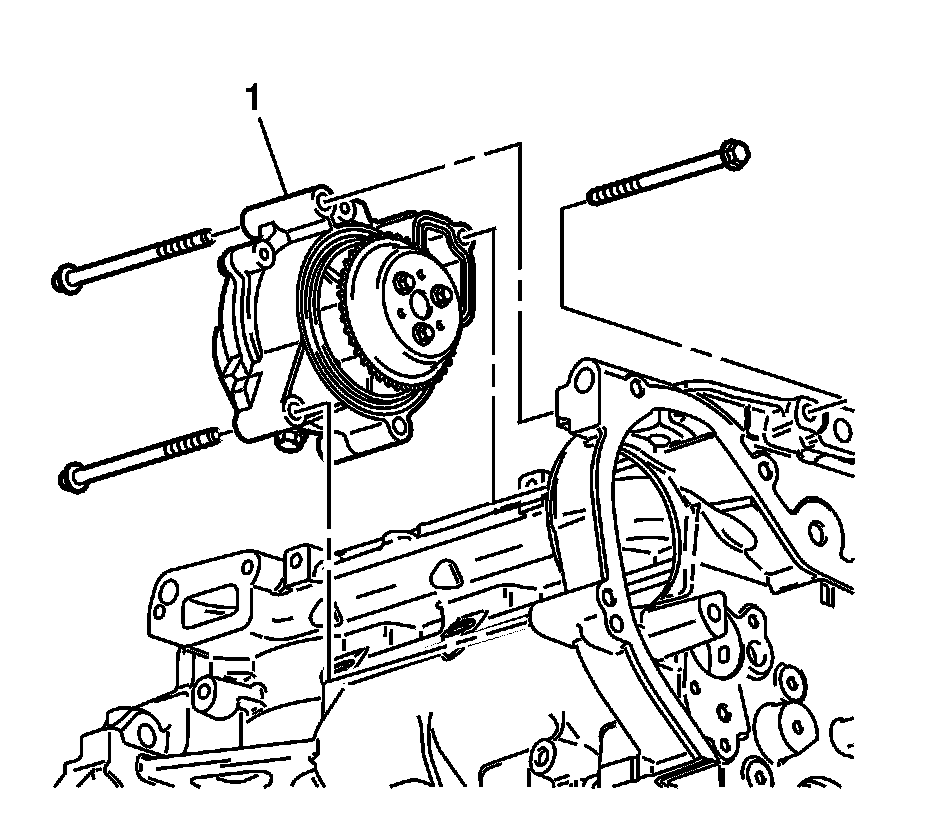

Install the water pump assembly (1).
Install the water pump bolts. Finger tighten the bolts.
Tighten the water pump bolts to 25 Nm (18 lb ft).
Install the water pump drain plug, if necessary. Tighten to 20 Nm (15 lb ft).
Install the water pump assembly (1).
Install the water pump bolts. Finger tighten the bolts.
Tighten the water pump bolts to 25 Nm (18 lb ft).
Install the water pump drain plug, if necessary. Tighten to 20 Nm (15 lb ft).
