Chevy Truck
>>
2013
>>
Avalanche 2WD V8-5.3L
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Splices By Number
>>
JX300 - JX399
>>

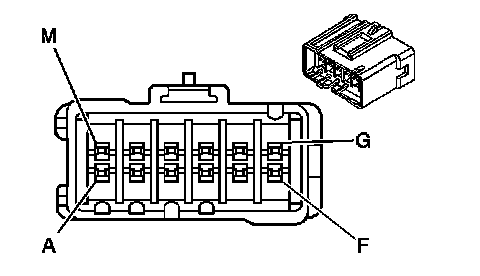

Splice Pack Connector End Views
Splice Pack Connector End Views
Splice Pack Connector End Views

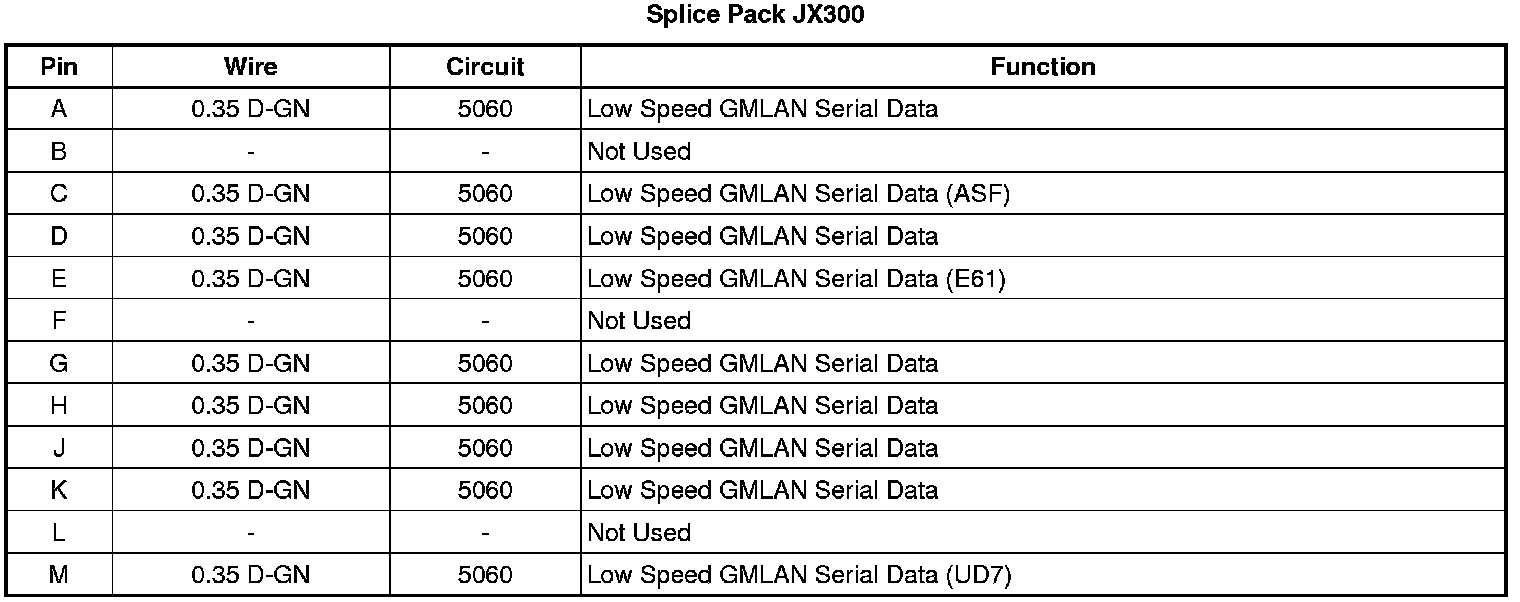

Splice Pack JX300
