Ground Distribution Schematics
>>
G200
>>

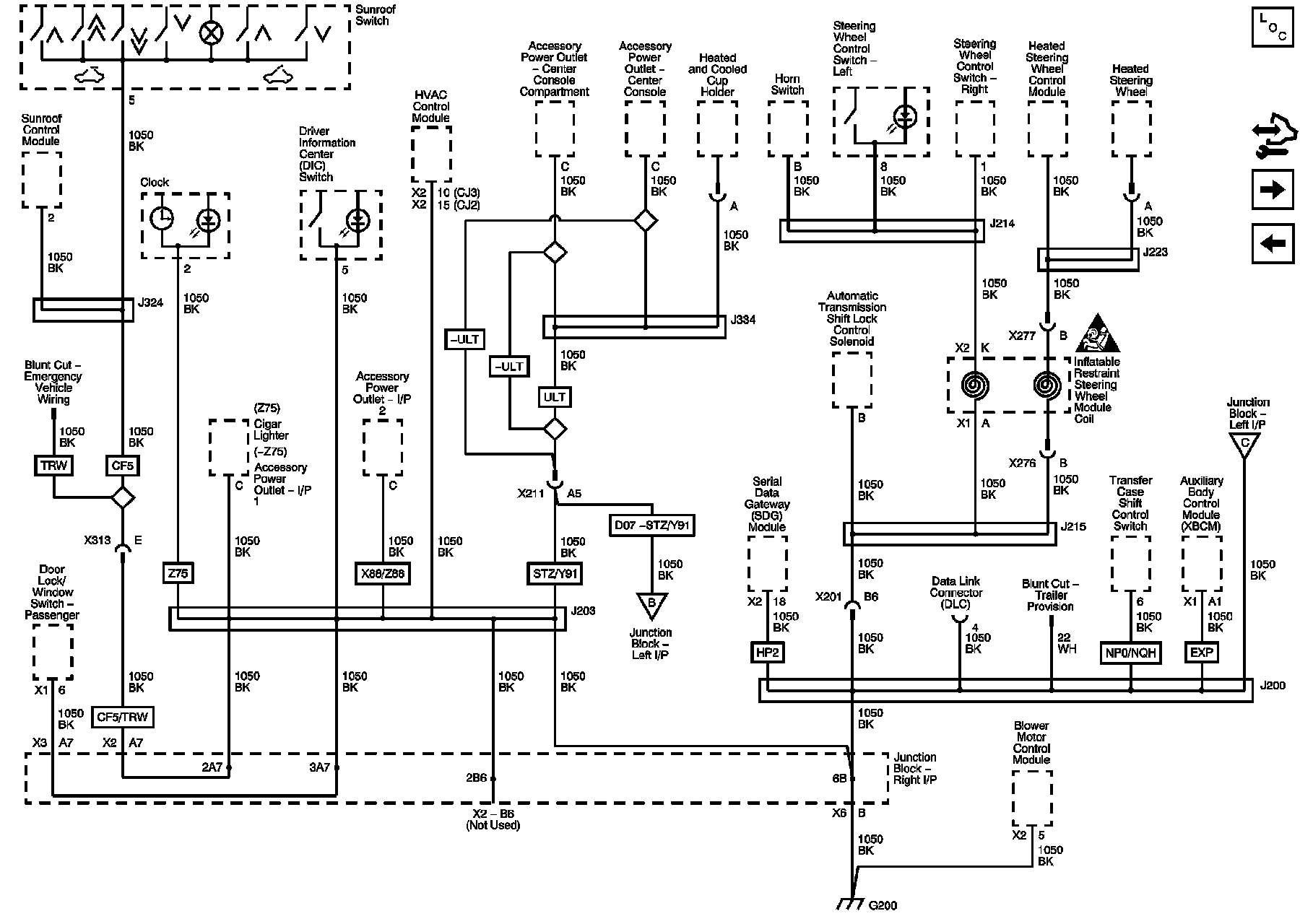

G200 (1 of 2)
G200 (1 of 2)
Ground Distribution Schematics
G200 (1 of 2)
