X329
X329

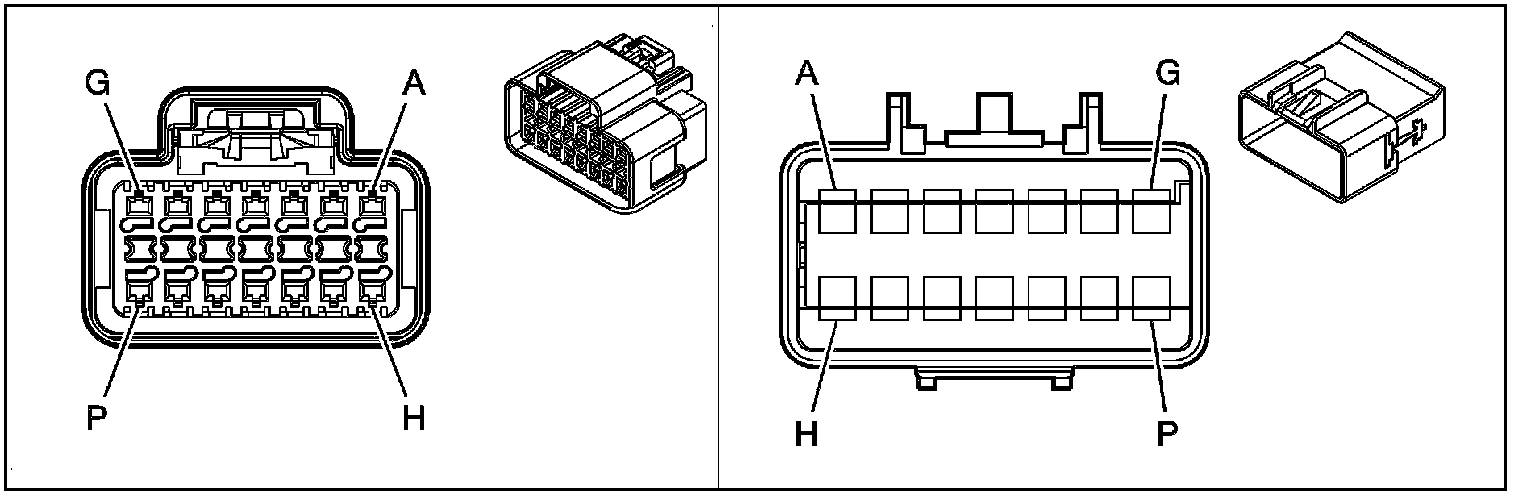

Inline Harness Connector End Views

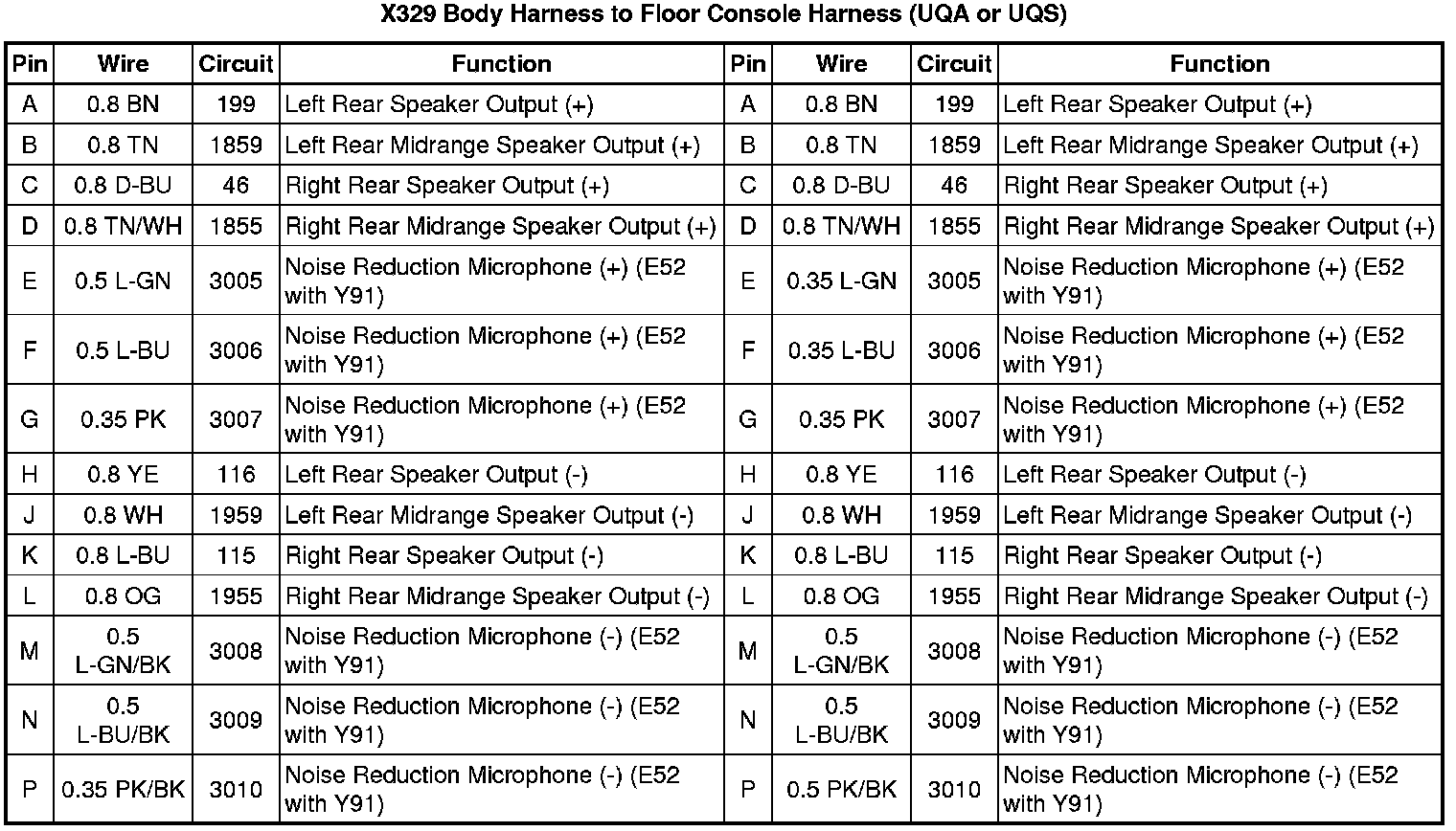

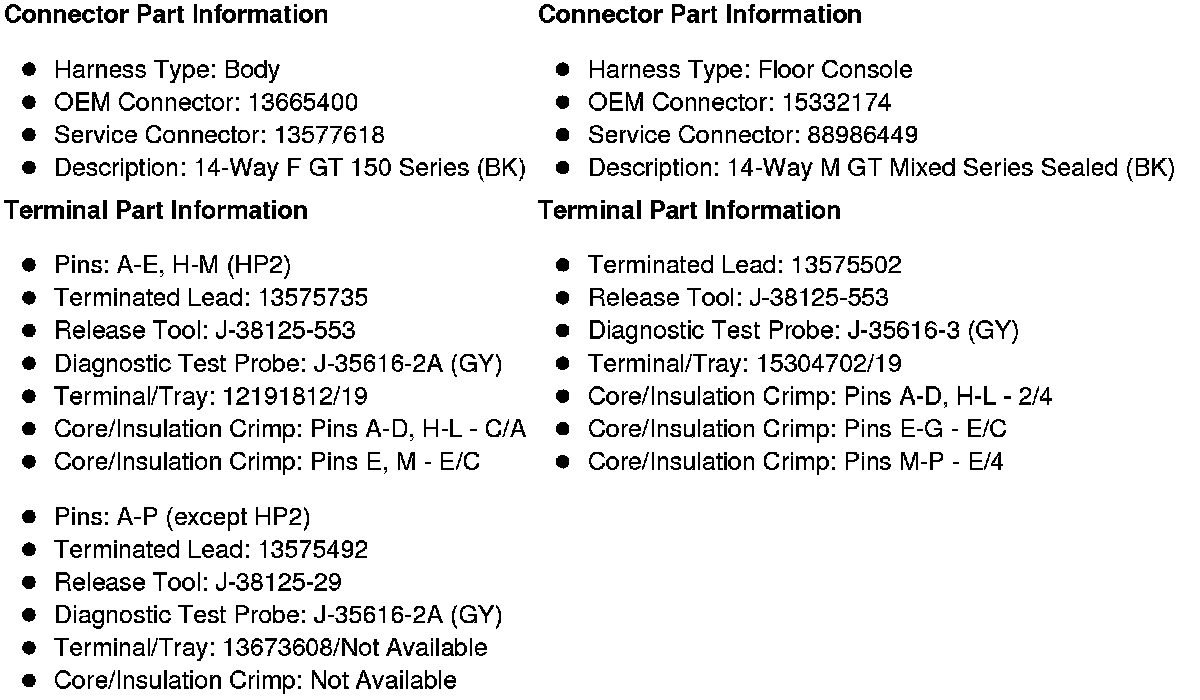

X329 Body Harness to Floor Console Harness (UQA or UQS)
