Power Window Motor
>>

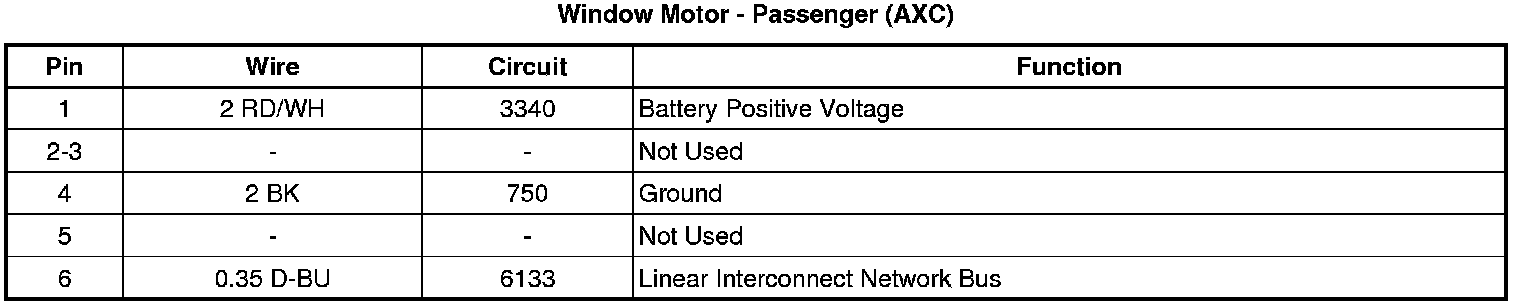

Window Motor - Passenger (AXC)
Window Motor - Passenger (AXC)

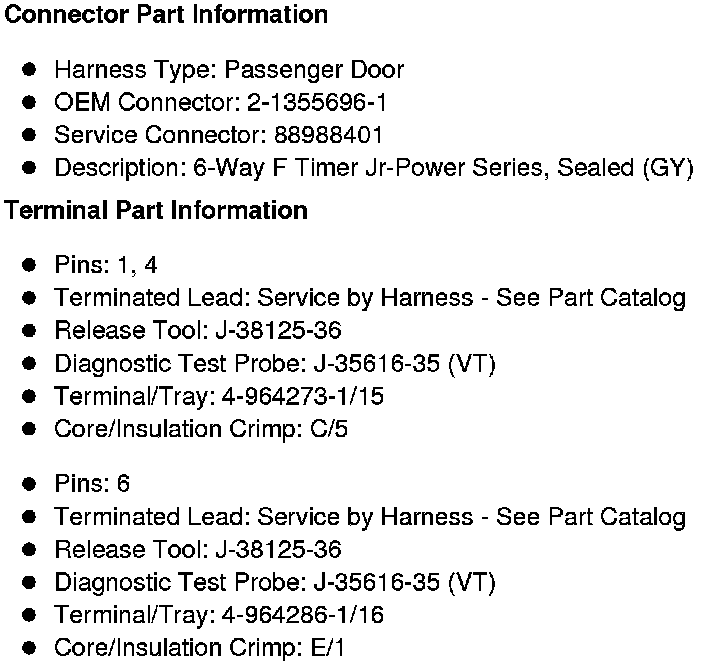

Component Connector End Views
Window Motor - Passenger (AXC)
