Chevy Truck
>>
2012
>>
Traverse FWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>

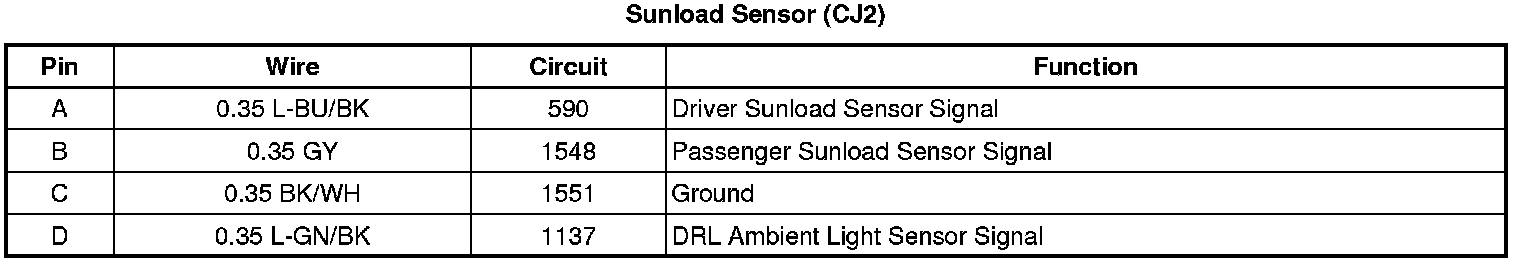

Sunload Sensor (CJ2)
Sunload Sensor (CJ2)

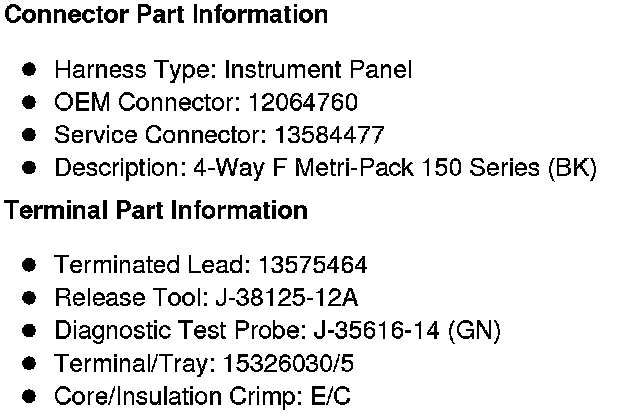

Component Connector End Views
Sunload Sensor (CJ2)
