Seat Recline Motor - Passenger (AAQ)
Seat Recline Motor - Passenger (AAQ)
Component Connector End Views

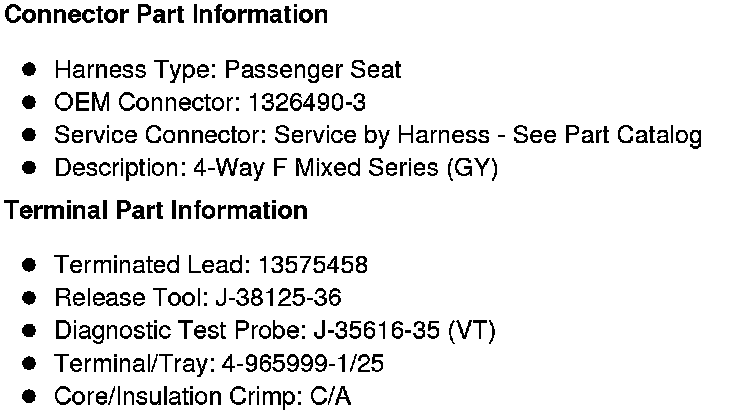

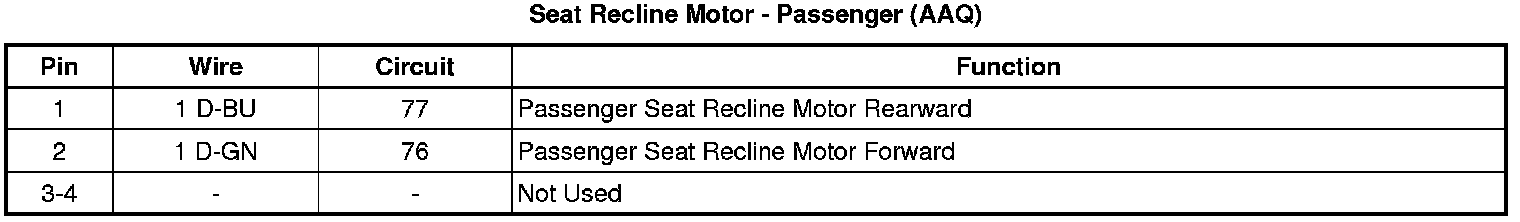

Seat Recline Motor - Passenger (AAQ)
