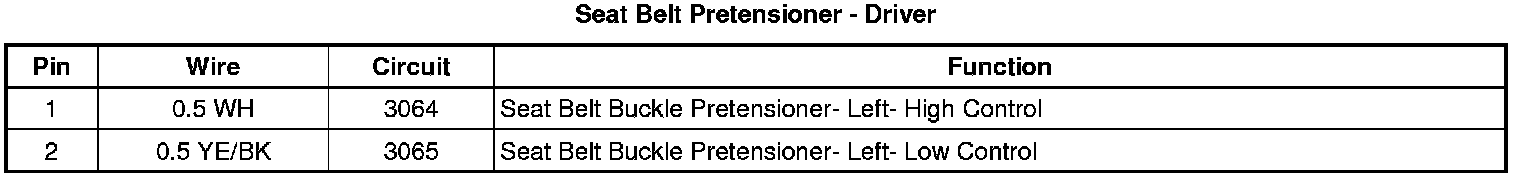

Seat Belt Pretensioner - Driver
Seat Belt Pretensioner - Driver

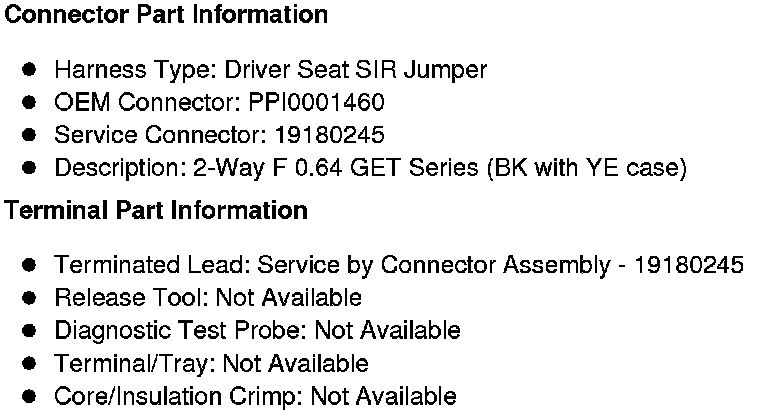

Component Connector End Views
Seat Belt Pretensioner - Driver
