Air Temperature Actuator (C67)
Air Temperature Actuator (C67)
Component Connector End Views

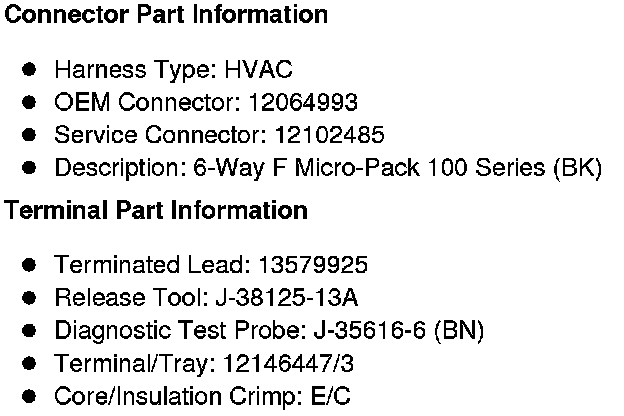

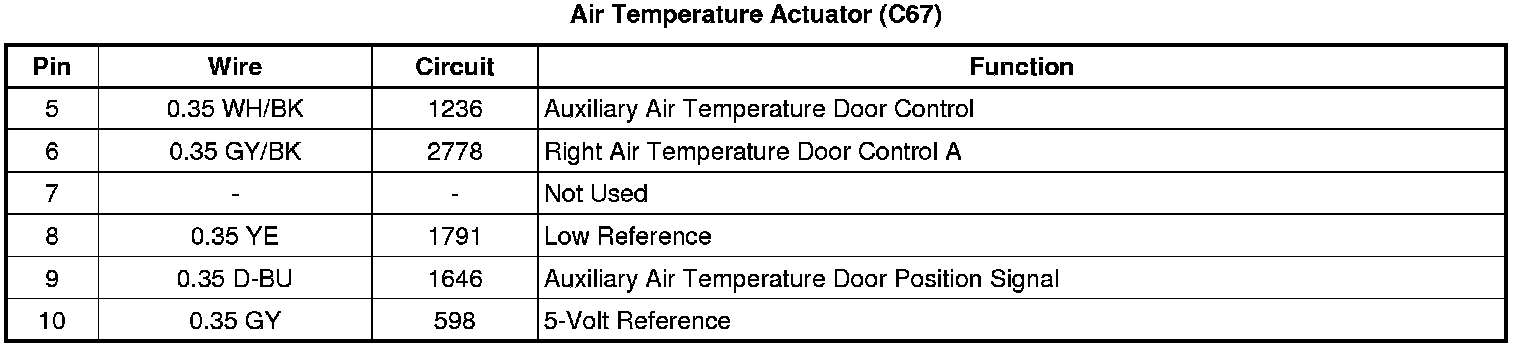

Air Temperature Actuator (C67)
