Home
>>
Chevy Truck
>>
2012
>>
Traverse AWD V6-3.6L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Service and Repair
>>
Removal and Replacement
>>

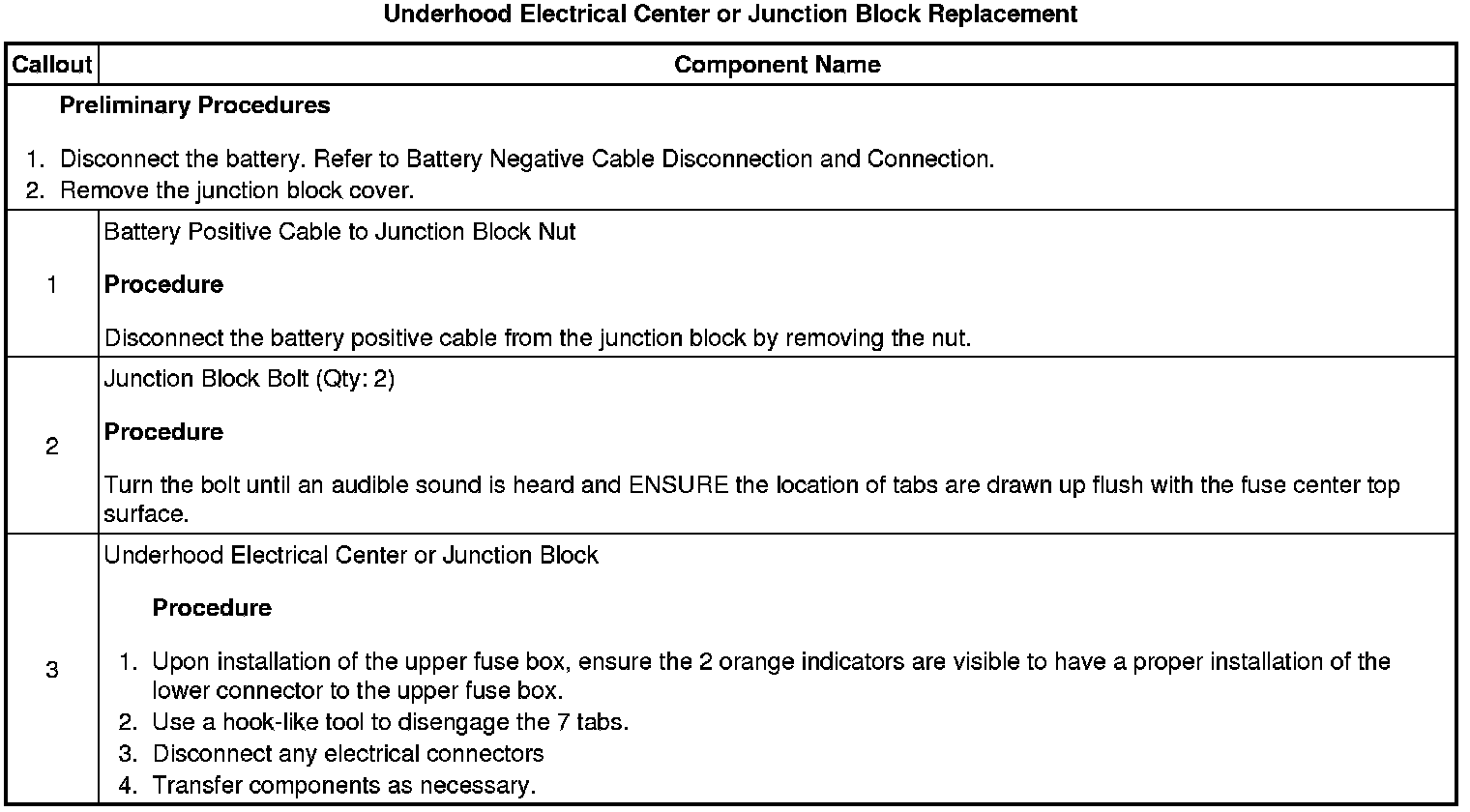

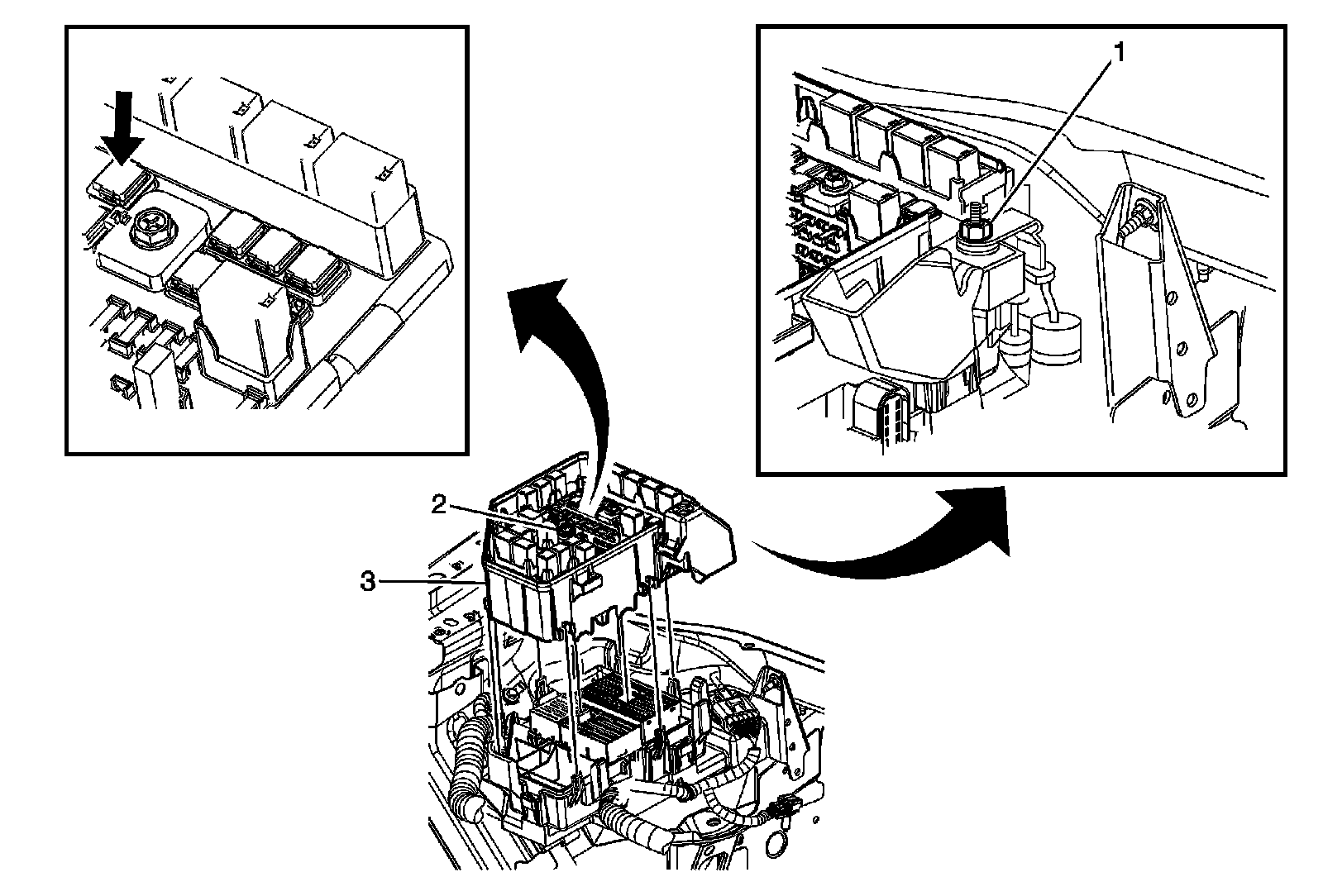

Underhood Electrical Center or Junction Block Replacement
Underhood Electrical Center or Junction Block Replacement
Underhood Electrical Center or Junction Block Replacement
